FLUKE-718EX 300G, Fluke 718 EX -830mbar to 20bar Pressure Calibrator, Калибратор давления

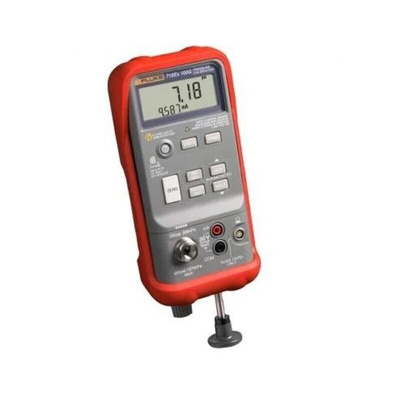

Fluke 718Ex 300G Pressure Calibrator

Pressure calibrator designed for use in potentially explosive areas.
Pressure sensor input of 20 bars full scale with 0.05% accuracy.
Built-in pressure / vacuum hand pump, with vernier and bleed valve.
Measures pressure up to 200 bar (using one of the eight intrinsically safe Fluke 700PEx pressure modules).
Current measurement with 0.02% accuracy and 0.001 mA resolution.
Supported units of pressure: psi, inH2O (4°C), inH2O (20°C), kPa, cmH2O (4°C), cmH2O (20°C), bar, mbar, kg/cm2, mmHg, inHg.
Pressure switch test function.
Zero, Min/Max and Hold display functions.
Compatible with non-corrosive gases.

Standards

ATEX II 1G EEx ia IIC T4 compliant, CSA I.S. Class I, Div. 1 Groups A-D, T4, EN 61326 2002-2, Class C

Supplied with

Protective red holster, TL75 test leads, set of test clips (red and black).

FLUKE Pressure Calibrator, -830mbar to 20 Bar Pressure Measurement Range, 0.015% Current Measuring Accuracy - 718 Series - FLUKE-718EX 300G

Need to ensure your devices won't crack under stress? Turn to this pressure calibrator from FLUKE. It has a wide measurement range of -830mbar to 20 bar, making it a versatile piece of kit. As it also gauges current, it lets you keep an eye on the all-around electrical performance of your system. A current measuring accuracy of 0.015% means you can count on it for precise results. Thanks to the unit's integrated vacuum hand pump, it's a cinch to bleed the valves and keep your calibrator squeaky clean.

• Safe for use in potentially explosive environments
• Wide operating temperature range between -10°C and +55°C for use in harsh conditions
• Compact dimensions of 216 (H) x 94 (W) x 66mm (D) for ease of handling

Applications

• Research and development labs
• Aerospace engineering
• Automotive manufacturing
• Medical equipment

What accessories come with this pressure calibrator?

It's supplied with a red holster, test leads, alligator clips, two 9V batteries and a user manual, so you have everything you need to get it up and running.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

718 Series Pressure Calibrator Users Manual

717/718/718Ex/719 Pressure Calibrators Data Sheet

Brochure - Pressure Calibration

Datasheet - FLUKE-718EX 300G
