TI20-RBP, Fluke Thermal Imaging Camera Battery Pack for Use with Fluke TI10, Fluke TI20, Fluke TI25, Fluke TIR, Fluke TIR1

Fluke Ti10 and Ti25 Thermal Imaging Cameras with IR-Fusion

The Fluke Ti25 and Ti10 Thermal Imagers are built for tough work environments, and these high-performance, fully radiometric imagers are ideal for troubleshooting electrical installations, electro-mechanical equipment, process instrumentation, HVAC equipment and many other applications

IR-Fusion® Technology simultaneously captures a digital photo in addition to the infrared image and fuses it together. Images enhanced with IR-Fusion® help identify and report suspect or faulty components enabling repairs to be done as well as prove that the problem was corrected.
-20ºC to 250ºC temperature range, ± 5ºC accuracy
≤0.2 °C thermal sensitivity (NETD) identifies small temperature differences that could indicate problems
Withstands dust and water – tested to IP54 rating
High performance, low noise sensor provides high quality image and stable temperature reading
Even the smallest details become visible with the large, widescreen full VGA colour LCD display
Store more than 3,000 screen images (.bmp format) for easy reporting direct into Microsoft Word® or 1,200 IR-Fusion images, including thermal image, visual image and temperature data for reporting and analysis purpose. Data is stored on included 2 GB SD memory card

Ti25 additional features

-20°C to 350°C temperature range, ±2°C accuracy
≤0.1°C thermal sensitivity (NETD) to identify very small temperature differences that could indicate problems
On-screen emissivity correction
Center point and hot & cold markers measurement modes
User selectable blending of IR/Visual image in Picture-in-Picture mode.

Ti10 additional features

FAST AUTO MANUAL TOGGLE
FAST AUTO RESCALE

Supplied with

Fluke SmartView™ analysis and reporting software (with free upgrades through life of product), 2 GB SD card, SD card reader for downloading images into a computer, Rugged hard carry case and portable soft carry case, hand strap to be used left or right handed, training CD, rechargeable battery, AC charger/power supply including mains adapters, manual

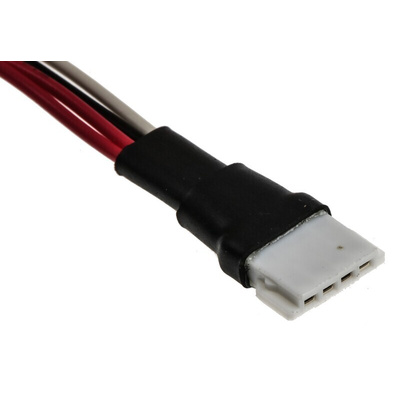

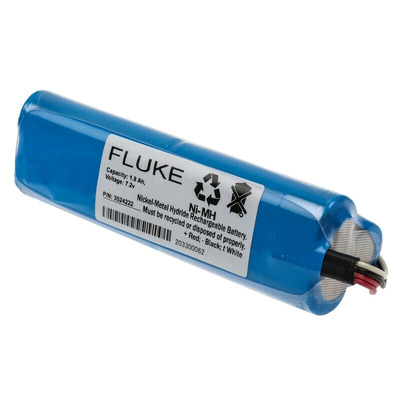

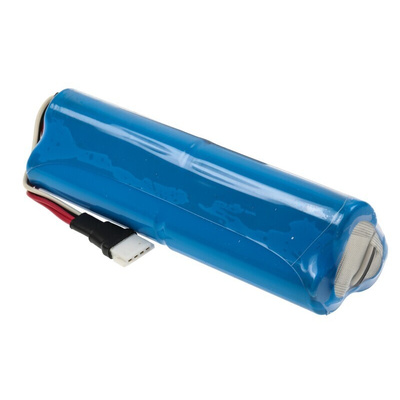

FLUKE Thermal Imaging Camera Battery Pack, Rechargeable, 7.2V Voltage - TI20-RBP

When you need a reliable power source, put this thermal imaging camera battery pack from FLUKE in charge. It delivers up to three hours of battery life to keep your device active during long work periods. As it's rechargeable, you can simply plug it in to give it a power boost. This means that you don't need to replace the battery every time your camera needs juice, so it's a sustainable choice.

• Field-swappable for quick replacement without the need to power down your camera
• Wide operating temperature range between -10°C and +50°C for use in harsh environments

Applications

• Building management
• Electrical engineering
• HVAC systems

How does a thermal imaging camera work?

Thermal imaging cameras work by converting the infrared energy emitted by an object into a colour-coded image that gives you information about the temperature of objects in the environment.

What's the advantage of using a thermal imaging camera?

A thermal imaging camera gives you detailed information about the spread of heat across an area, so you can quickly detect temperature problems in sensitive environments.
