0 980 24, Legrand Grey Polyamide Cable Gland, PG16 Thread, 10mm Min, 14mm Max, IP68, Кабельный ввод

0521093
Номер производителя: 0 980 24Производитель: Legrand
Цена за 1 коробку (20 шт)
27050.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

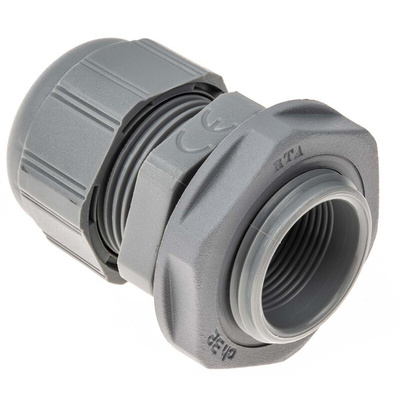

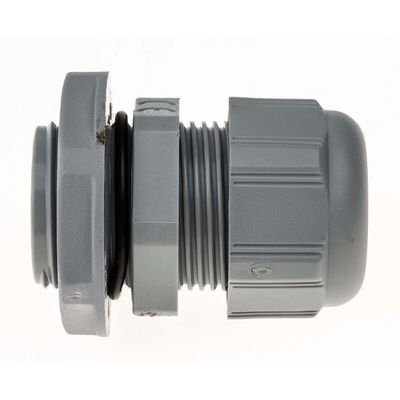

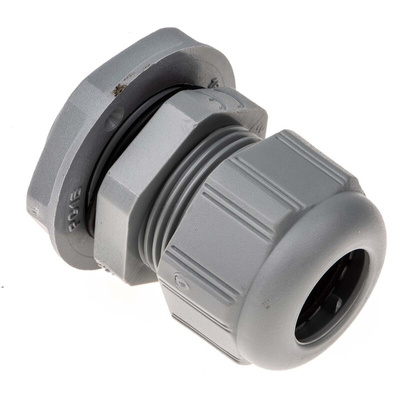

Legrand Cable Gland

The Legrand grey cable gland has a thread size of PG 16 and maximum clamping capacity of 14mm. This gland anti-vibration mechanically tightened cable gland comes with a neoprene O-ring seal. The cable gland has locking section with flexible blades that exert strong pressure on the cable providing excellent tensile strength. It has a housing made of halogen-free polyamide material.

Features and Benefits

Supplied with surface seal and locking nut mounted
Operating temperature ranges between -20°C and 80°C
Self-extinguishing
Weather proof

Certifications

IP68 rated
VDE - 40023632 approved
OC / CB - 585402E/A2
OC / CB - 585402C/A2
NF - 618861D
UL 94-V2 approved

Техническая спецификация
pdfDatasheet
pdfCable Gland Selection Chart
