DET4TC2-RS, Megger DET4TC2 Earth Tester 200000Ω CAT IV 100 V RS Calibration, Измеритель сопротивления заземления

DET4TC 4 Pole Earth Tester

4 pole earth tester for measuring soil resistivity and resistance of earth rods and associated installations. Supplied in a hard carry case together with auxiliary stakes and cables.,An ICLAMP selective clamp is available separately, and when used with the DET4TC allows the testing of an earth rod without the need for disconnection from the system.,A VCLAMP is also available separately, which when used in conjunction with ICLAMP allows stakeless measurements to be made in situations where driving auxiliary stakes is not practical.

Resistance range 0.01 to 20000 ohms auto ranging
Choice of 2, 3 or 4 terminal measurements
Simple one button operation
Superior noise rejection to 40V pk-pk
Measures earth voltage 0 – 100V
Automatic P spike and C spike check
Clamp input for no-disconnect testing (required ICLAMP)
Clamp inputs for stakeless testing (required ICLAMP and VCLAMP)
Earth current range (requires ICLAMP)

Standards

EN61010-1 CAT IV 100V

Supplied with

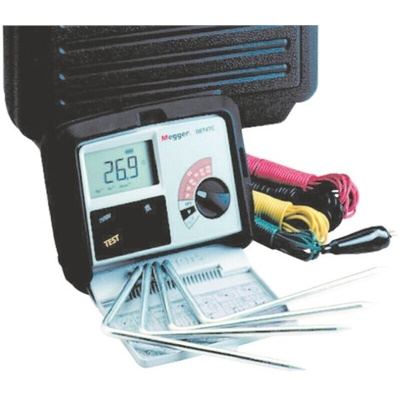

4 earth test stakes, 4 connection leads, 8 x AA alkaline batteries, hard carry case, quick start guides, user guide on CD

Megger Earth & Ground Resistance Tester

The Megger earth and ground resistance tester measure a 200kΩ absolute maximum resistance and having the CAT IV 100V safety category. This 4-pole earth tester is used to measure soil resistivity and resistance of earth rods and associated installations. It is supplied in a hard carry case together with auxiliary stakes and cables. An ICLAMP selective clamp is available separately and when used with the DET4TC allows the testing of an earth rod without the need to disconnect from the system. A VCLAMP is also available separately, which when used in conjunction with ICLAMP allows stakeless measurements to be made in situations where driving auxiliary stakes is not practical.

Features and Benefits

Automatic P spike and C spike check
Choice of 2, 3 or 4 terminal measurements
Clamp input for no-disconnect testing (requires ICLAMP)
Clamp inputs for stakeless testing (requires ICLAMP and VCLAMP)
Earth current range (requires ICLAMP)
Measures earth voltage between 0V and 100V
Operating temperature ranges between -15°C and 55°C
Resistance ranges between 0.01ohms and 20000ohms auto ranging
Simple one-button operation
Superior noise rejection to 40V (Pk-Pk)

Certifications

EN61010-1 CAT IV 100V
IEC61326
IP54 rated
