RS PRO 890 piece E Type, External, Internal Steel Circlip Kit for 1.7 → 12 mm, 3 → 12 mm, 8 → 12 mm Shaft, Набор стопорных колец

RS PRO Black Steel Circlips

Black Phosphated Steel clips conform to the requirements of BS3673
Available in packs of individual sizes of External and 'E' types
Suitable RS circlip pliers available

Note

Two circlip kits are available separately
Kit 1 contains small sized clips (523-165)
Kit 2 contains large sized clips in both cases (523-171)

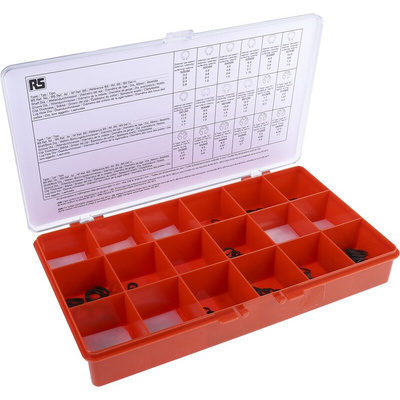

Each kit is contained in a moulded compartment storage box, complete with a layout sheet giving dimensional information

RS PRO 890 Piece Steel Circlip Kit

RS PRO circlip kit which contains a range of circlips including E Type circlips, External circlips and Internal circlips.
Circlips (also known as retaining rings) are types of fastener which look like flexible, open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings, retaining clips, C-type, Jesus clips, snap rings, and E-type.
Circlips come in two main types – internal and external. An external circlip is designed to fit around a bore, whereas internal circlips are made to fit inside a cylindrical shaft or housing.
It is always important to choose the right circlip sizes for the job at hand. The retaining ring must be suitable to fit inside the shaft where it will be installed (internal circlips) or should fit snugly around the outside of the housing (external circlips). If the retaining ring is incorrectly sized, the installation will be significantly more challenging, and it may lead to further problems in the future if left unchecked.

Features:

For 1.7 to 12 mm, 3 to 12 mm and 8 to 12 mm diameter shaft
Fits 1.17 to 8.96 mm, 2.8 to 11.5 mm and 8.4 to 12.5 mm diameter groove

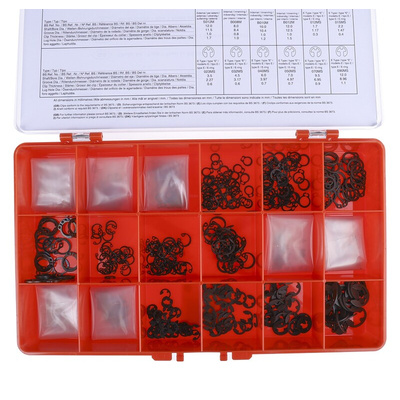

Kit Contents:
External:-
3 mm x 75
4 mm x 70
5 mm x 65
6 mm x 60
8 mm x 50
10 mm x 30
12 mm x 30
Internal:-
8 mm x 40
10 mm x 30
12 mm x 30
'E' type:-
1.4 mm x 75
2 mm x 70
3 mm x 65
4 mm x 60
5 mm x 50
6 mm x 30
8 mm x 30
10 mm x 30

Typical Applications:

A circlip set will typically feature a selection of circlips. Sets usually include a variety of common sized retaining rings, alongside a range of internal, external, and E-clips to provide greater flexibility to the user.

Circlip kits are ideal for professionals regularly working with circlips of different types and sizes, a circlip kit is particularly handy if you are unsure what size circlip you will need for future applications.

FAQs
How Do You Measure External Circlip Size?
When measuring the size of an external circlip, you should measure the nominal size of the groove diameter. Do not measure the shaft diameter as this will result in an inaccurate measurement when comparing external circlip sizes.

How Do You Measure Internal Circlip Size?
To accurately measure the size of an internal circlip, you will need to measure the nominal size of the groove diameter. Avoid measuring the bore diameter as this will not provide the correct size.
