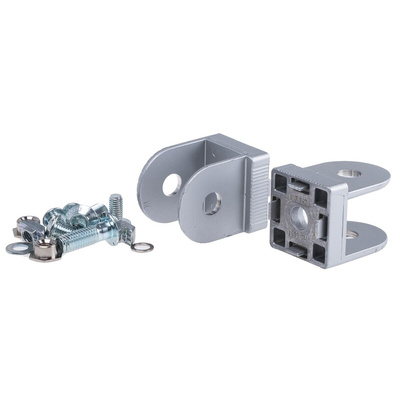

3842538686, Bosch Rexroth M8 Multi-Angle Connector Connecting Component, Strut Profile 45 mm, Groove Size 10mm

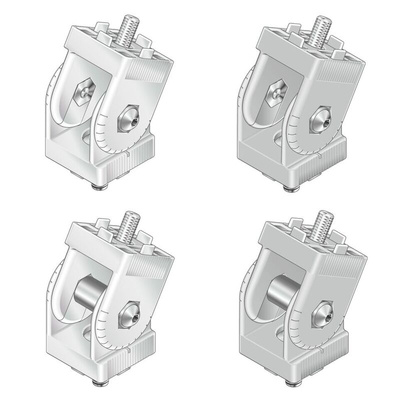

Joint

Joint for rigid or movable 30x30, 40x40 or 45x45 profile connections at any angle of your choice within 182°
designLINE Joint with special silver paint for an attractive high-quality design for all MGE fixtures. Also available in economical die-cast finish.
With a 15° graduation
No profile end finishing preparation
Fasteners are included, except for the bolt connector 437-1514 for the 30x30 Joint
30x30 accepts bolt connector 437-1514, not provided
40x40 and 45x45 accepts S12x30mm fastener provided
Material: Joint: 30 & 45 Die-cast Zinc and 40 Die-cast Aluminium, nickel plated ; Fastening parts: galvanized steel

Bosch Rexroth Connecting Component, Multi-Angle Connector Type, Fits 45mm Strut Profiles - MGE Series - 3842538686

This clever connecting component from Bosch Rexroth does the trick when you're joining strut profiles at an angle. Its 180° range makes it a versatile choice for complex builds. You can clamp it securely in place, or simply swivel it if your design calls for a pivoting motion. As the component's made of hardwearing die-cast aluminium and resists up to 15000N of force, it's sturdy enough to hold its own in harsh environments.

Features & Benefits

• Markings in 15° increments help you adjust to the exact angle you need
• 10mm profile slots create easy end connections with 45 (W) x 45mm (H) struts
• ESD protection prevents static discharge

Applications

• Assembly lines
• Loading bays
• Material handling enclosures

What's the benefit of designLINE paint?

The DesignLINE paint this connector is finished with prevents scratches and won't interfere with ESD performance. Plus, it looks good, too
