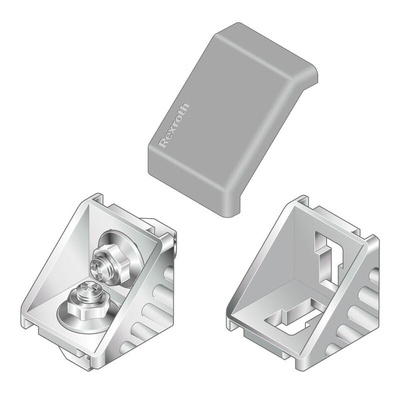

3842551603, Bosch Rexroth M8 Angle Bracket Connecting Component, Strut Profile 40 mm, Groove Size 10mm

designLINE Angle Brackets

These Bosch designLINE Angle Brackets have special silver paint to give an attractive high-quality design for all MGE fixtures. They can be used to make a strong connection between 20 x 20, 30 x 30, 40 x 40, 45 x 45 or 50 x 50 profiles at an angle of 90°.

Features and Benefits

• Includes non-turning centring lugs for rapid and precise alignment
• Used for shelf supports, structure reinforcement, securing systems to the floor, and so on

RS article\tMPN\tSize
523376\t3842551596\t20x20x20
523354\t3842551597\t20x40x40
523364\t3842551598\t30x30x30
523360\t3842551601\t30x60x60
523336\t3842551602\t30x60x120
523370\t3842551603\t40x40x40
523382\t3842551604\t40x80x80
523332\t3842551605\t40x80x160
523320\t3842551606\t45x45x45
523326\t3842551607\t45x90x90
523342\t3842551608\t45x90x180

Bosch Rexroth Connecting Component, Angle Bracket Type, 20mm Length - MGE Series - 3842551603

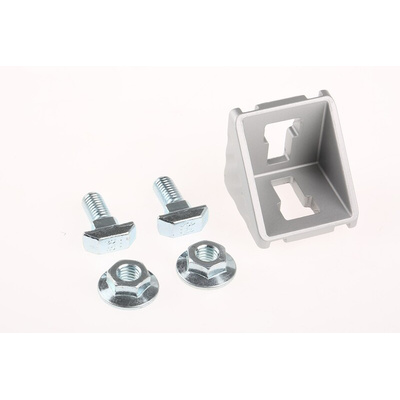

Join your shelving at just the right angle with this connecting component from Bosch Rexroth. The 90° bracket is on-point for constructing crisp, clean corners and has non-turning centering lugs to help you with spot-on assembly. To make it easy on the eye, the unit comes with a smooth silver finish that works well in contemporary settings. For snappy and convenient installation, collar screws are included.

Features & Benefits

• Made from robust die-cast aluminium that brings rigidity and strength to structures
• Corrosion-resistant, so suitable for humid locations
• Cover caps to keep out dirt and give a neat finish
• Intermediate element for optionally positioning bracket in next largest slot

Applications

• Breweries
• Storage facilities
• Retail outlets
• Workshops

What size strut is this angle bracket compatible with?

This angle bracket is designed to fit a 40mm strut profile, so it's easily compatible.

Datasheet
