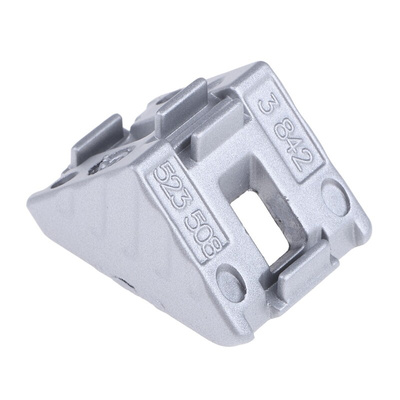

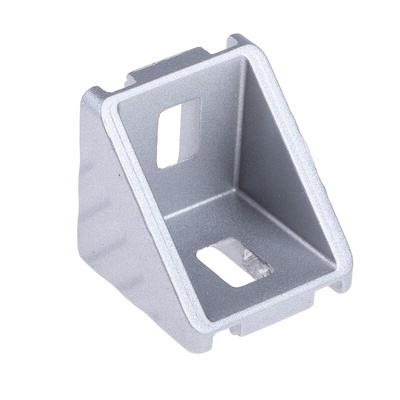

3842551596, Bosch Rexroth M4 Angle Bracket Connecting Component, Strut Profile 20 mm, Groove Size 6mm

Bosch Rexroth Connecting Component, Gusset Type, M4 Thread Size - designLINE Series - 3842551596

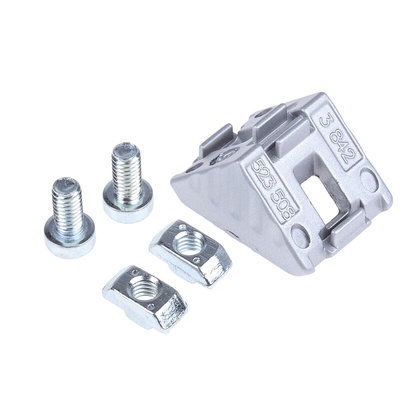

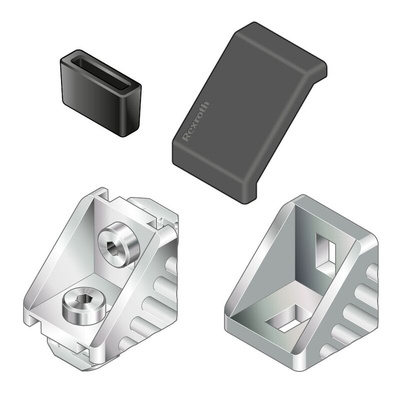

Securely link strut profiles with this connecting component set from Bosch Rexroth. The kit contains everything you need to join two structural systems at a right angle, including a bracket, fasteners and a cover cap. Assembly is fast and easy thanks to the collar-screw design and centering lugs. This angled bracket is an essential part of the production-plant construction process.

Features & Benefits

• Die-cast aluminium bracket can withstand impact and corrosion, making it suitable for use in harsh environments
• Cover cap prevents contamination from dust and dirt, supporting optimal performance
• Sliding block for precise positioning

Applications

• Marine industry
• Measurement and instrumentation devices
• Metalworks

What's the function of the intermediate element in this connecting component kit?

The intermediate element in this kit serves as an adapter to position the 6mm bracket in an 8mm profile strut slot.
