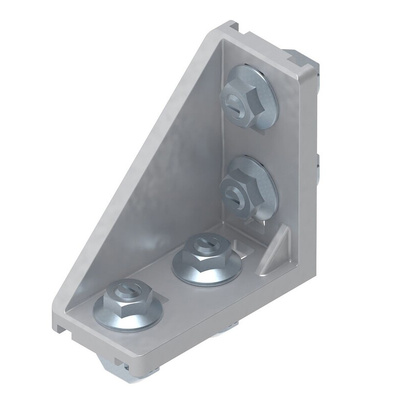

3842551604, Bosch Rexroth M8 Angle Bracket Connecting Component, Strut Profile 40 mm, Groove Size 10mm

designLINE Angle Brackets

These Bosch designLINE Angle Brackets have special silver paint to give an attractive high-quality design for all MGE fixtures. They can be used to make a strong connection between 20 x 20, 30 x 30, 40 x 40, 45 x 45 or 50 x 50 profiles at an angle of 90°.

Features and Benefits

• Includes non-turning centring lugs for rapid and precise alignment
• Used for shelf supports, structure reinforcement, securing systems to the floor, and so on

RS article\tMPN\tSize
523376\t3842551596\t20x20x20
523354\t3842551597\t20x40x40
523364\t3842551598\t30x30x30
523360\t3842551601\t30x60x60
523336\t3842551602\t30x60x120
523370\t3842551603\t40x40x40
523382\t3842551604\t40x80x80
523332\t3842551605\t40x80x160
523320\t3842551606\t45x45x45
523326\t3842551607\t45x90x90
523342\t3842551608\t45x90x180

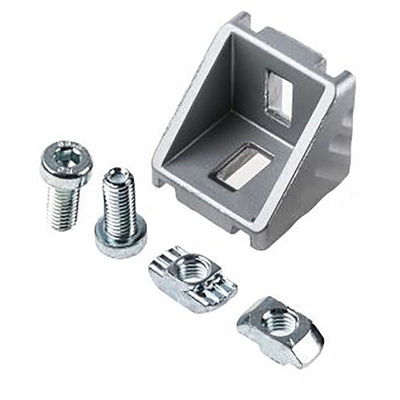

Bosch Rexroth Connecting Component, Angle Bracket Type, 25mm Length - MGE Series - 3842551604

Piece your struts together in a jiffy with this connecting component from Bosch Rexroth. The angle bracket comes with collar screws, so you've got all the right assembly accessories at your fingertips. Centering lugs put a stop to turning, which helps you with on-the-mark alignment. Hardwearing aluminium construction means the unit adds strength to your shelving or worktops, so you know they won't buckle under pressure. This metal also resists corrosion, making the connector compatible with humid environments.

Features & Benefits

• Keeps structures light, thanks to a weight of just 212g
• Suitable to assemble on plates, as centering lugs can be easily broken off

Applications

• Pharmaceutical manufacturing
• Chemical processing
• Automotive production
• Food and beverage industries

What colour is this angle bracket?

This angle bracket has a silver finish, so is at home in contemporary settings.

Datasheet
