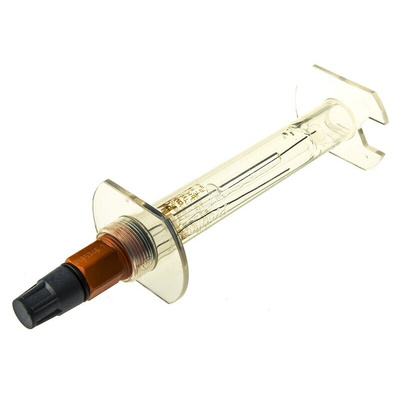

150702, ProMinent pH Probe

ProMinent PH Sensor

The ProMinent PH sensor is a high tech device used to monitor and control pulsing liquids. It helps in online measurement and adjustment of pH values that must be as accurate, fast and reliable as possible. The pH sensor has of range 1 to 12. The pH sensor is optimised for use in portable water treatment, swimming pools and hot tubs at up to 60°C/3 bar. The production of these pH sensors is subject to very strict quality controls (the example, in accordance with RoHS guidelines). Routine steps are automated, but critical steps are carried out manually under expert supervision for optimum reproducible quality and cost reduction.
Product Application Information:
This pH sensor has been optimised for use in potable water treatment, swimming pools and hot tubs at up to 60°C/3 bar.

Features and Benefits

Precise and reliable pH measurement enables efficient processes and maximum process reliability
Wide range of special versions for fitting length, cable length, and plugs for made-to-measure connection to your process
SN6 plug-in head electrical connection
Glass sensor shaft
Vertical up to 25° fitting position
Fitting length 120 ±3mm
12mm shaft diameter
Ceramic diaphragm
Maximum pressure is 3.0bar
Minimum conductivity is 150μS/cm
Electrolyte gel containing potassium chloride

Applications

Chemical processes
Chemically contaminated water
Swimming pool water, potable water
Process water
Cooling water, waste water
Seawater
Suspensions, sludge, and emulsions
Exhaust air scrubber, semiconductor industry, and electroplating

Certifications

IP65 rated
