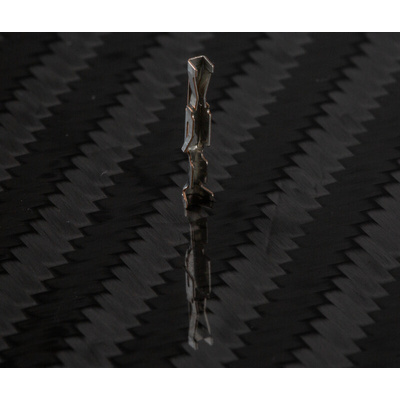

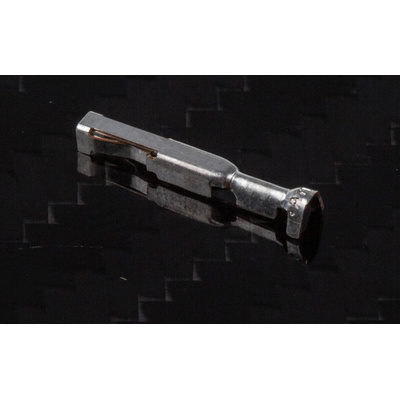

182734-2, TE Connectivity AMPMODU HE14 Series Female Crimp Terminal, 28AWG Min, 24AWG Max, Контакты

Crimp Terminals

Tin plated phosphor bronze, accepts 28 to 24awg (diameter over insulation 1.2mm)
Recommended wire strip length 3.25mm

Note

For tooling use stock no. 449-376
Snaps into crimp socket shells stock no. 532-333, etc.

TE Connectivity AMPMODU HE14 Interconnect System

The AMPMODU interconnect system is the signal standard for automation and control applications and is both reliable and economical. The AMPMODU HE14 interconnect system has a 2.54mm centreline and consists of IDC receptacle assemblies for terminating discrete wires or ribbon cable, shrouded headers, receptacle housings and crimp contacts. When combined, these connectors can be used in a wide variety of industrial applications and systems.

Crimp Contact, Tin, for HE1402 Connector - Drawing

Datasheet
