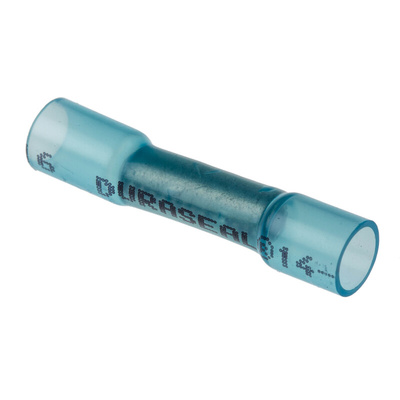

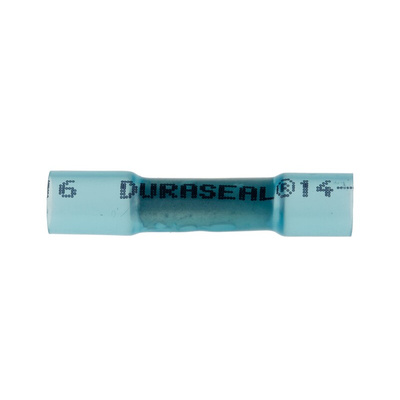

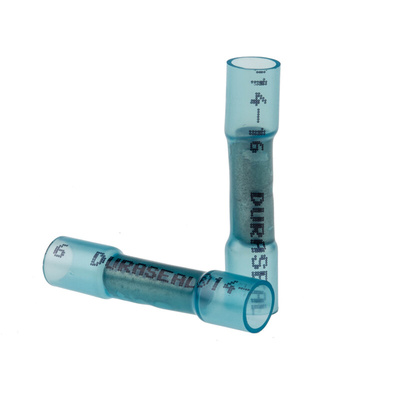

DS-14-16-RS, TE Connectivity, DuraSeal Butt Splice Connector, Blue, Insulated, Tin 16 → 14 AWG, Контакты

Splices

Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

Approvals

UL

Blue 16 → 14 AWG

Features and Benefits:

Colour is blue - colour coded for easy identification of gauge sizes
Maximum wire size 2.0mm Dia.
1.5 to 2.5mm² CSA
Resistance to moisture and abrasion
Strain relief
Protection from wire pull out
Easy to install

Materials:
Insulative sleeve - polyamide with thermoplastic adhesive coating inside
Crimp splice – Tin plated copper alloy
Base metal – Copper

Applications:

These splice connectors are designed to splice tin plated or bare copper stranded wires with an insulation rated for at least 85 degrees C. Can be found in areas such as:

Automotive
Commercial wiring
Marine electronics

Approvals

UL

Duraseal Heatshrinkable

TE heat shrinkable pre-insulated nylon splices and crimp terminals provide reliable connections, especially where environmental sealing is important. Covering cable sizes from 0.5mm - 6.0mm², they are designed for use where water or condensation may be encountered, or where abrasion or mechanical abuse could be problematic. To complete a joint, the cable connector is crimped in the traditional manner, and the sleeving is then heated to shrink around the cable insulation. Special adhesive flows during the heating to seal the joint.

• The TE Duraseal kit is especially suited for use in automotive (approved by most car manufacturers) and marine builds, where environmental sealing is important
• Kits are also available comprising various heat-shrinkable pre-insulated nylon splices and terminals, covering ranges from 0.5mm² to 6.0mm².

Approvals

UL Listed

Heat Shrinkable Environmentally Sealed,Nylon Crimp Splices Product Features

DuraSeal Heatshrinkable Product Data Sheet

DuraSeal Crimp Splice Data Sheet

Installation Procedure for Duraseal Splices und Terminals
