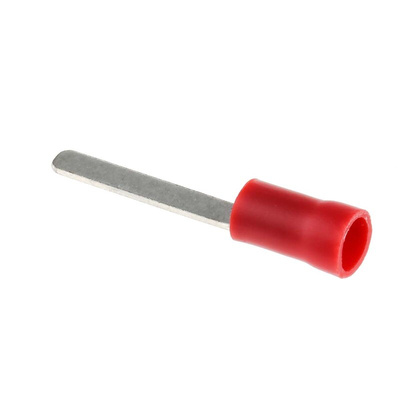

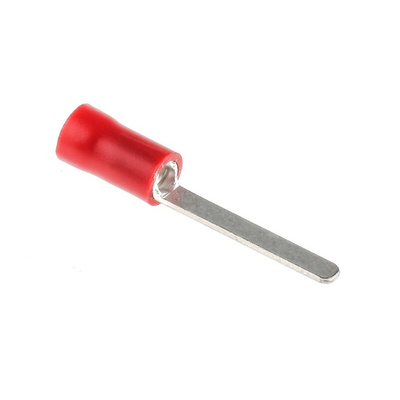

RS PRO Insulated Crimp Blade Terminal 17.6mm Blade Length, 0.5mm² to 1.5mm², 22AWG to 16AWG, Red

RS PRO Insulated Crimp Blade Terminal 17.6 mm Blade Length, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, Red

This crimp terminal blade from the RS PRO range allows you to terminate your stranded single-wire electrical connections without needing to solder them. It has a tight-fitting design that protects the metal interior from corrosion, making it a long-lasting choice.
Thanks to its tin-plated copper material, the crimp blade guarantees you a durable and reliable electrical connection. The blade is insulated with flared vinyl to protect the connection against damage. The insulation is colour-coded in red, so you can quickly and easily identify different wire sizes. A crimp terminal blade like this one is commonly used by electricians for its versatility and ease of use.

Features and Benefits

• Blade length of 17.6 mm
• Blade thickness of 0.8 mm
• Blade width of 2.5 mm
• Overall length of 28 mm
• Inner diameter of 4.3 mm
• Red colour
• Copper contact material
• Tin contact plating
• Male gender
• Not hooked
• Insulated
• Vinyl insulation material
• Maximum wire size of 16 AWG (American Wire Gauge)
• Minimum wire size of 22 AWG (American Wire Gauge)
• Maximum wire size of 1.5 mm²
• Minimum wire size of 0.5 mm²
• Unshrouded
