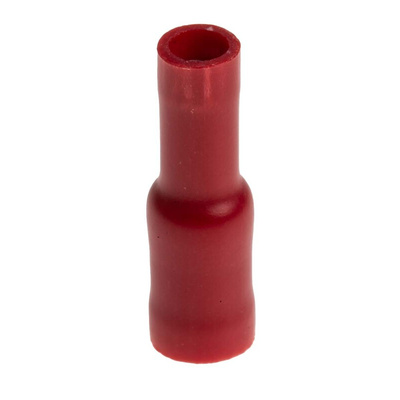

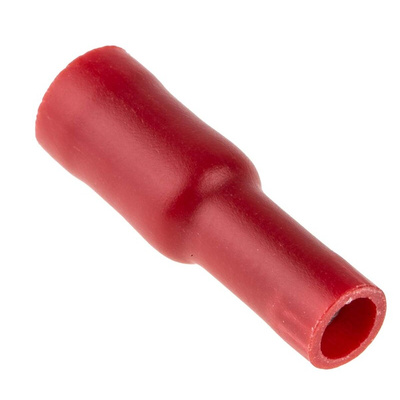

RS PRO Insulated Female Crimp Bullet Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 4mm Bullet diameter, Red

RS PRO Insulated Female Crimp Bullet Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, 4.3 mm Bullet Diameter, Red

This crimp terminal bullet connector from RS PRO gives you a way of terminating your stranded or solid wire electrical connections without needing to solder them. The snug design of the connector is air-tight, keeping moisture and oxygen out and protecting the wires from corrosion.
It's easy to install, as the bullet crimp simply snaps into place after the wires have been pushed in for a strong join. The connector is made from highly conductive tin-plated copper for reliable conductivity. Thanks to its PVC (polyvinyl chloride) insulation, your connection is shielded against mechanical damage.
The insulation is colour-coded in red, so you can quickly and easily identify different wires at a glance. This type of connector is commonly used in automation, recording studios and theatres.

Features and Benefits

• Bullet diameter of 4.3 mm
• Red colour
• Brass contact material
• Tin contact plating
• Female gender
• Insulated
• PVC (polyvinyl chloride) insulation material
• Maximum wire size of 16 AWG (American Wire Gauge)
• Minimum wire size of 22 AWG (American Wire Gauge)
• Maximum wire size of 1.5 mm²
• Minimum wire size of 0.5 mm²
• Overall length of 22.5 mm
• Shrouded
