RS PRO Insulated Crimp Spade Connector, 2.5mm² to 6mm², 12AWG to 10AWG, M5 Stud Size Vinyl, Yellow

RS PRO Insulated Spade Connectors

These insulated crimp-spade terminals are your go-to solution for effortless wire termination without the hassle of soldering. Designed to connect wires to studs, bus bars, and more, they provide unmatched strength and durability with their copper construction and tin plating. But that's not all - these connectors are also insulated with a non-conductive, corrosion-resistant nylon material for ultimate safety and longevity.

Features and Benefits

• Insulated fork terminals


• Copper with a tin plating


• Colour coded to correspond with wire size


• Strength and durability


• All models are highly reliable and excellent quality

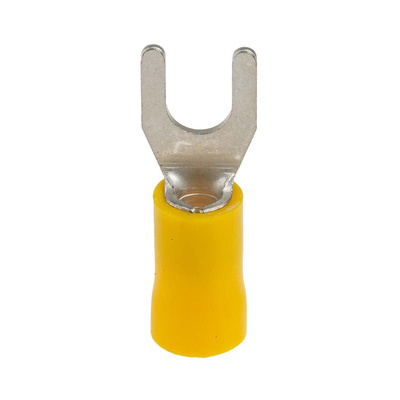

RS PRO Insulated Crimp Spade Connector, 2.5 mm² to 6 mm², 12 AWG to 10 AWG, M5 Stud Size Vinyl, Yellow

Use this insulated crimp-spade connector from the RS PRO range to connect wiring to studs and screws. It's suitable for use with wire sizes ranging from 12 to 10 American Wire Gauge (AWG), making it suitable for a range of applications.


The flared design of its vinyl and nylon insulation sleeves make it easy to insert the connector. To secure it in place, you can simply crimp the end of the connector, eliminating the need for soldering. The copper contacts are highly conductive to ensure consistent electrical transmission.


Thanks to the connector's yellow colour, it's easily identifiable within your setup. This kind of connector is commonly found in industrial applications such as electronics engineering and telecommunications. You can use it with terminal blocks, electrical panels and wiring harnesses.

Features and Benefits

• Yellow colour


• Copper contact material


• Tin contact plating


• Insulated


• Vinyl insulation material


• Maximum wire size (AWG) of 10 AWG


• Maximum wire size (mm²) of 6 mm²


• Minimum wire size (AWG) of 12 AWG


• Minimum wire size (mm²) of 2.5 mm²


• Overall length of 26 mm


• M5 stud size


• Thickness of 1 mm


• Width of 9.5 mm
