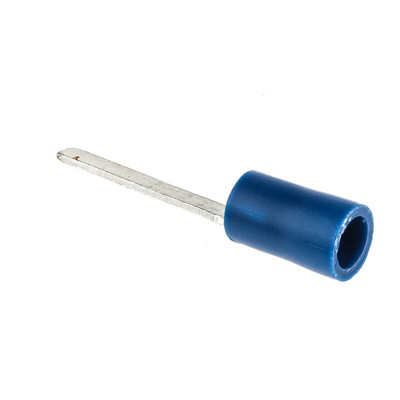

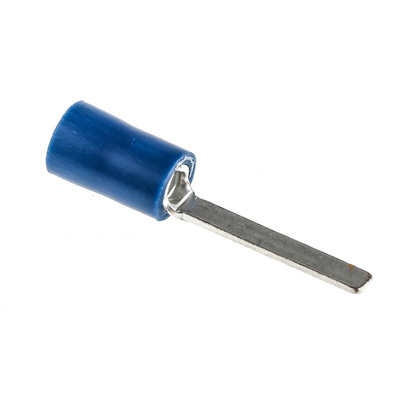

RS PRO Insulated Crimp Blade Terminal 18.1mm Blade Length, 1.5mm² to 2.5mm², 16AWG to 14AWG, Blue

RS PRO Insulated Crimp Blade Terminal 18.1 mm Blade Length, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, Blue

Terminate your stranded single-wire electrical connections without the need for solder with this crimp terminal blade from the RS PRO range. It has a tight-fitting design that keeps the metal interior from corroding, making it a long-lasting choice.


The crimp blade is made of tin-plated copper for a strong, reliable electrical connection. The blade is insulated with flared vinyl to prevent damage to the connection. For ease of identification, the insulation is colour-coded in blue. Thanks to their versatility and ease of use, electricians routinely use crimp terminal blades like this one.

Features and Benefits

• Blade length of 18.1 mm


• Blade thickness of 0.8 mm


• Blade width of 2.5 mm


• Blue colour


• Copper contact material


• Tin contact plating


• Male gender


• Not hooked


• Inner diameter of 4.8 mm


• Insulated


• Vinyl insulation material


• Maximum wire size of 14 AWG (American Wire Gauge)


• Minimum wire size of 16 AWG (American Wire Gauge)


• Maximum wire size of 2.5 mm²


• Minimum wire size of 1.5 mm²


• Overall length of 28 mm


• Unshrouded
