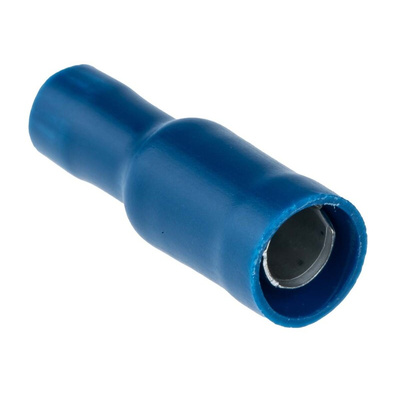

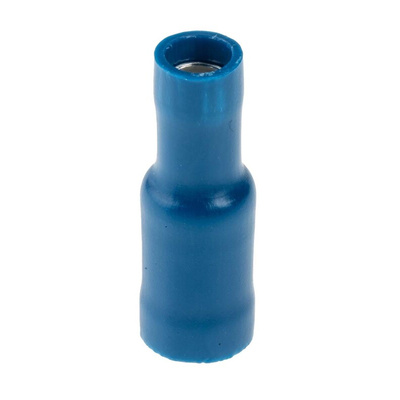

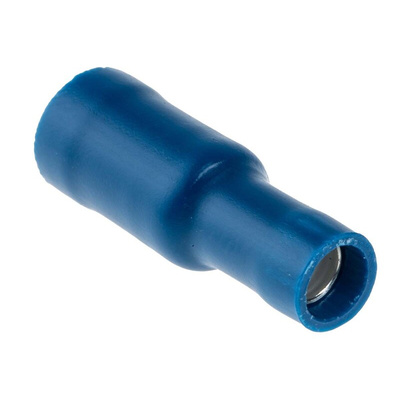

RS PRO Insulated Female Crimp Bullet Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 5mm Bullet diameter, Blue

RS PRO Insulated Female Crimp Bullet Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, 5 mm Bullet Diameter, Blue

You can terminate stranded or solid wire electrical connections with this RS PRO crimp terminal bullet connector. It doesn't require soldering, making it an easy-to-use choice. The snug design creates an air-tight connection to keep oxygen and moisture out, keeping your wires shielded from corrosion.


Once the wires have been pushed in, the bullet crimp simply snaps into place. This ensures a secure connection and makes installation straightforward. The connector is made of highly conductive tin-plated copper for long-term conductivity. The PVC (polyvinyl chloride) insulation protects your connection from mechanical damage.


This type of connector is used in automation, recording studios and theatres. As the insulation is colour-coded in blue, it makes it easy to identify different wires at a glance.

Features and Benefits

• Bullet diameter of 5 mm


• Blue colour


• Brass contact material


• Tin contact plating


• Female gender


• Insulated


• PVC (polyvinyl chloride) insulation material


• Maximum wire size of 14 AWG (American Wire Gauge)


• Minimum wire size of 16 AWG (American Wire Gauge)


• Maximum wire size of 2.5 mm²


• Minimum wire size of 1.5 mm²


• Overall length of 23 mm


• Shrouded

Dimensional Drawing

RS Pro Datasheet
