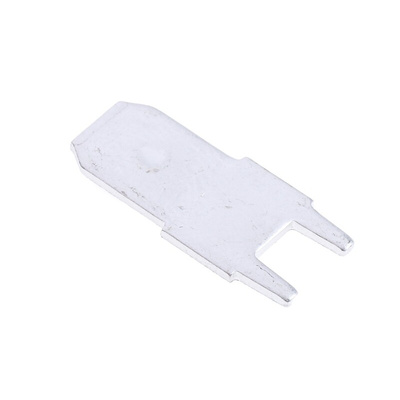

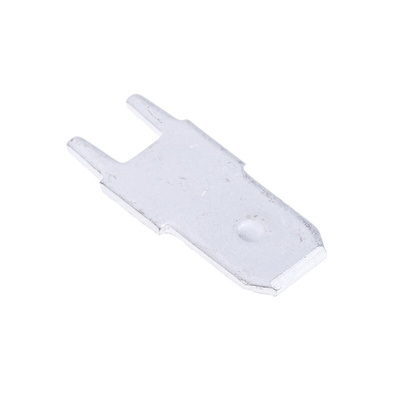

RS PRO Grey Uninsulated Male Spade Connector, PCB Tab, 7.9 x 6.4mm Tab Size

RS PRO Grey Uninsulated Spade Connector, 7.9 x 6.4 mm Tab Size

Use this spade connector from RS PRO for a reliable way to make electrical connections. It's uninsulated, so you can use it to connect stranded wire terminals and printed circuit boards (PCBs).


The tab adapter uses soldering to create an air-tight join that protects the integrity of your connection. It's tin-plated to ensure good electrical conductivity and resistance to wear and corrosion, so it provides a durable connection that will last a long time.


Thanks to its compact size, this connector is suitable for use in tight spaces. You'll find this type of connector used in a variety of electrical applications.

Features and Benefits

• Grey colour


• Brass contact material


• Tin contact plating


• Uninsulated


• One tab


• Overall length of 16.5 mm


• Tab size of 7.9 x 6.4 mm


• Tab thickness of 0.8 mm


• Tab width of 6.4 mm


• Solder termination method

RS Pro Datasheet
