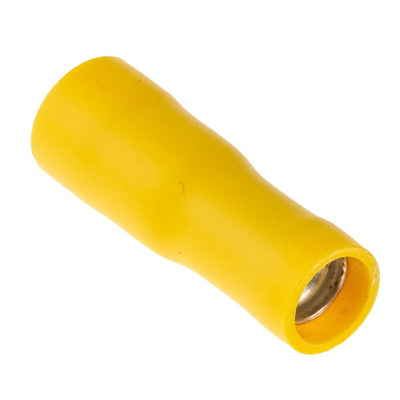

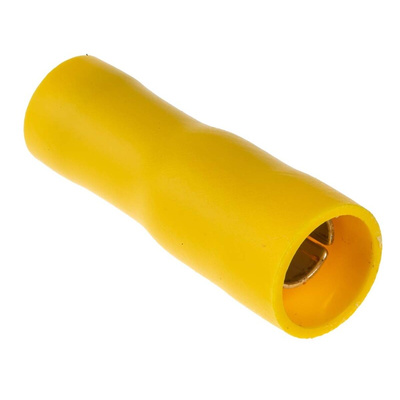

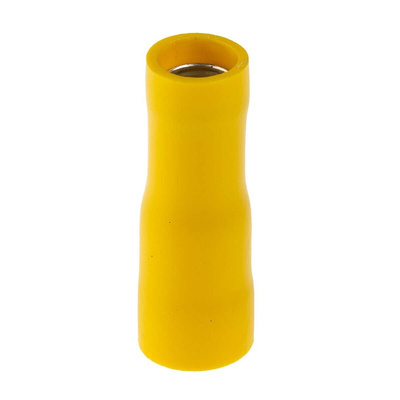

RS PRO Insulated Female Crimp Bullet Connector, 2.5mm² to 6mm², 12AWG to 10AWG, 5mm Bullet diameter, Yellow

RS PRO Insulated Female Crimp Bullet Connector, 2.5 mm² to 6 mm², 12 AWG to 10 AWG, 5 mm Bullet Diameter, Yellow

This RS PRO crimp terminal bullet connector lets you terminate stranded or solid wire electrical connections without the need for soldering. It features an air-tight design that protects your wires against corrosion by keeping moisture and oxygen out.


After the wires have been pushed in, the bullet crimp snaps into position for a secure join. The connection is made of highly conductive tin-plated copper for long-term conductivity. The PVC (polyvinyl chloride) insulation also protects your connection from mechanical damage.


The yellow insulation colour makes it easy to identify different wires within a colour-coded system. Use this connector in automation, theatres and recording studios.

Features and Benefits

• Bullet diameter of 5 mm


• Yellow colour


• Brass contact material


• Tin contact plating


• Female gender


• Insulated


• PVC (polyvinyl chloride) insulation material


• Maximum wire size of 10 AWG (American Wire Gauge)


• Minimum wire size of 12 AWG (American Wire Gauge)


• Maximum wire size of 6 mm²


• Minimum wire size of 2.5 mm²


• Overall length of 24 mm


• Shrouded
