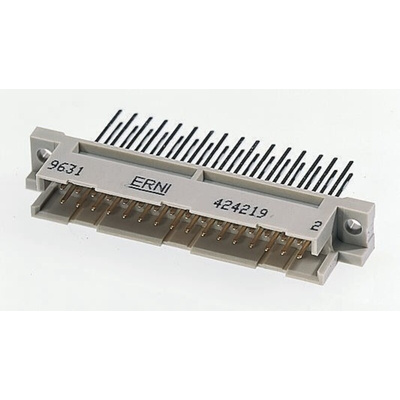

284.325, ERNI 48 Way 2.54mm Pitch, Type R/2 Class C2, 3 Row, Right Angle DIN 41612 Connector, Socket, Разъем

Short Type B/C, inverted Q/R

In accordance with DIN 41612/IEC 603-2, for use in 19” Eurocard plug-in systems
Excellent quality and reliability

Different connection variations

Connection between plug-in cards and backplane wiring
Connection between two PCBs arranged one above the other
As a peripheral connector for external interfaces of the wiring plane

Advantages

0.8 mm Lead with Type B, C, Q, R for all positions
Pre-centring: For plug connectors with leading contacts, the male connector is pre-centred for greater security
Max. Maximum contact security and constant contact resistances thanks to two-legged, opposing spring contacts
Coding: This prevents incorrect plugging and consequent damage to sensitive electronic components due to overload
Coding strips do not require any additional separator in the 19-inch rack

Approvals

UL, CSA

284325
