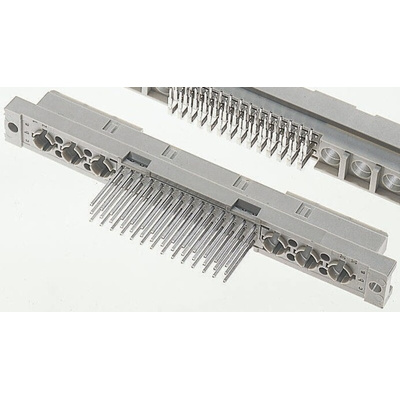

354219, ERNI 24 + 8 Way 2.54mm Pitch, Type M Class C2, 3 Row, Straight DIN 41612 Connector, Socket, Разъем

ERNI Type M Hybrid DIN 41612 Connectors

These mixed signal and power/coaxial hybrid connectors correspond to Type M to DIN 41612. As well as signal contacts to 4A, it is possible to install high current contacts to 40A. This has expanded the potential applications for these connectors to include telecommunication and data technology. The multipoint plug and plug connectors can be populated with 2, 4, 6 or 8 special contacts, all of which lie within a 2.54mm pitch.
Coding: it is possible to code the connector; this prevents incorrect plugging and subsequent destruction of sensitive electronic components due to overload.
Contacts: the special contacts made from beryllium copper can be used without aids in the cavities provided.
Approvals: UL, VG, CSA, CECC 75101-801

Standards

DIN 41612, Quality Class 2 (Draft), and IEC 60603-2

354219
