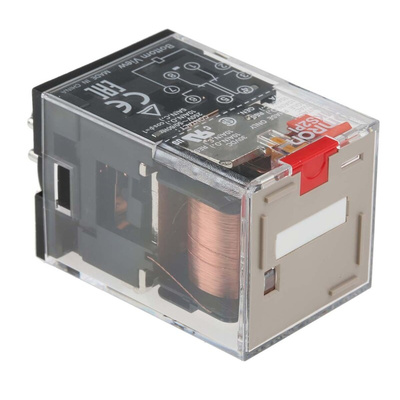

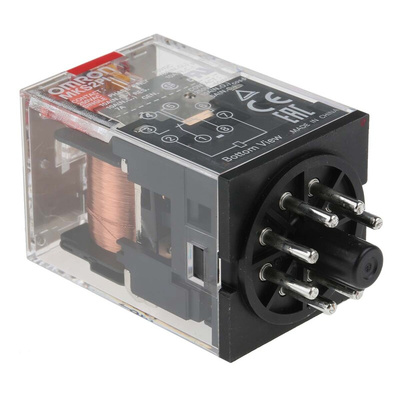

MKS2PIAC230, Omron Plug In Power Relay, 230V ac Coil, 10A Switching Current, DPDT, Реле

General Purpose Relays, MKS Series

All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C

Note

When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A

Approvals

UL, TUV (IEC), CSA

MKS2PI AC230 Super General Purpose Non-Latching Relay.

The Omron MKS2PI AC230 non-latching relay is complete with the same wiring as previous Super MK series lays along with a built-in mechanical indicator and lockable test button. This standard model of relay has DPDT contacts and AC/DC coil ratings. As this model is a standard non-latching relay with standard internal connections there is no LED indicator included.

Features and Benefits.

•\tMK-S Super Series.
•\tBuilt-in mechanical indicator.
•\tLockable test button (do not use the test button unless to test the relay)
•\tAC/DC coil.
•\tDPDT Contacts.
•\tRated voltage 230 V ac.
•\tRated current 10 mA at 50 HZ, 11.5 mA at 60 Hz.
•\tCoil resistance 4250 Ω.
•\tMust operate voltage 80% max of rated voltage.
•\tMust release voltage 30% min of rated voltage at 60 Hz, 25% min of rated voltage at 50 Hz.
•\tMax voltage 110% of rated voltage.
•\tPower consumption 2.3 VA at 60 Hz, 2.7 VA at 50 Hz.

Contact Rating.

•\tSingle mechanism.
•\tMaterial AgSnIN.
•\tNO (normally open) rated load 10 A. 250 V ac, 10 A, 30 V dc.
•\tNC (normally closed) rated load 5 A, 250 V ac, 5 A, 30 V dc.
•\tRated carry current and max switching current 10 A.
•\tSwitching voltage max 250 V ac, 250 V dc.

Additional Relay Features.

•\tDielectric strength 2500 V ac 50/60 Hz (1 min between coil and contacts).
•\tDielectric strength 1000 V ac 50/60 Hz (1 min between contacts and terminal of the same polarity).
•\tDielectric strength 2500 V ac 50/60 Hz (1 min between current carrying parts, non-current parts and opposite polarity).
•\tPollution degree 3.
•\tVibration resistance destruction 10 to 55 to 10 Hz, 0.75 mm single amplitude, 1.5 mm double amplitude.
•\tVibration resistance malfunction 10 to 55 to 10 Hz, 0.5 mm single amplitude, 1 mm double amplitude.
•\tShock resistance destruction 1000 m/s².
•\tShock resistance malfunction 100 m/s².
•\tAmbient operating temperature -40°C to 60°C, no icing or condensation.
•\tRelay approx. weight 90 g.

Safety.

•\tEnsure the marking is at the bottom when mounting the MK-S.
•\tEnsure you do not accidentally as this will turn ON the contacts.
•\tEnsure that circuits, load and any other connected items operate safely before using the test button.
•\tUse an insulated tool when operating the test button.

MK-S Datasheet
