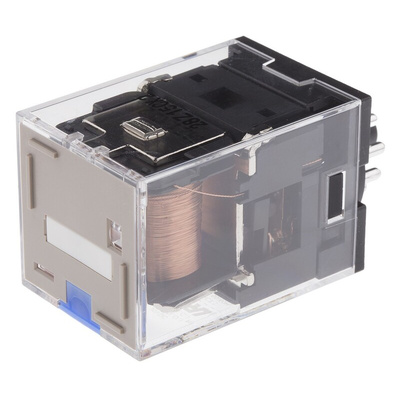

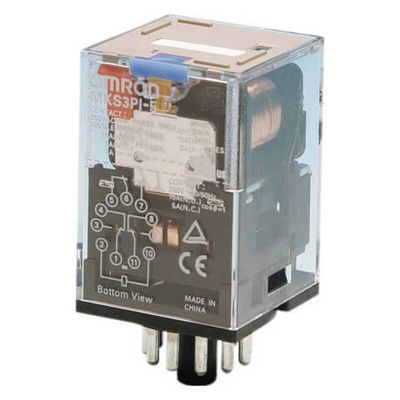

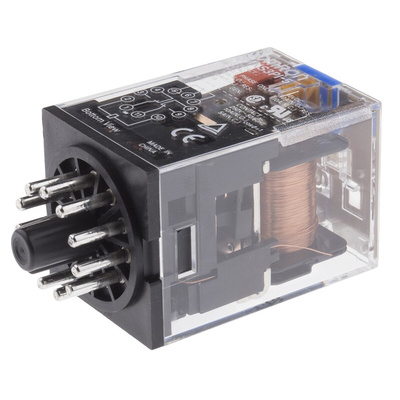

MKS3PI-5 DC24, Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, 3PDT, Реле

General Purpose Relays, MKS Series

All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C

Note

When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A

Approvals

UL, TUV (IEC), CSA

OMRON Power Relay, 34.5 (L) x 34.5 (W) x 53.3mm (H), 300W Maximum Switching Power - MKS Series - MKS3PI-5 DC24

Get your system going with this general-purpose power relay from OMRON. It manages up to three circuits at once, making it ideal for three-phase motors and lighting systems. Rest easy, as it only uses approximately 1.4W of power during operation, making it an energy-efficient addition to your setup. You can lock the operation to maintain the NC or NO state even after you turn off the current to the relay, which further contributes to energy savings. Simply pull the latching lever out while holding down the yellow button with an insulated tool and the contacts stay in place.

Features & Benefits

• Performs reliably in an operating temperature range from -40°C to +60°C
• Light 90g weight doesn't put unnecessary strain on your setup
• Maximum operating frequency of 18,000 cycles per hour suits fast-paced applications

Applications

• Factory automation
• Telecommunication networks
• HVAC systems

How do I mount this device?

It's straightforward to install this device with a track-mounting socket (such as 794-8221 or 353-663). Once it's connected, simply pop the assembly onto a DIN rail and you're good to go.
