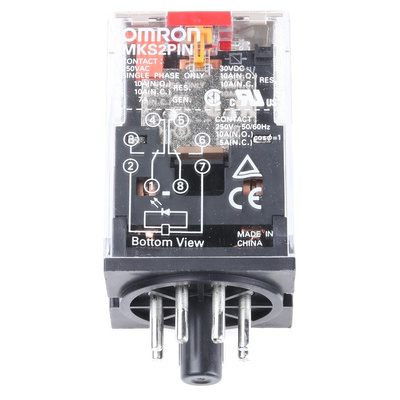

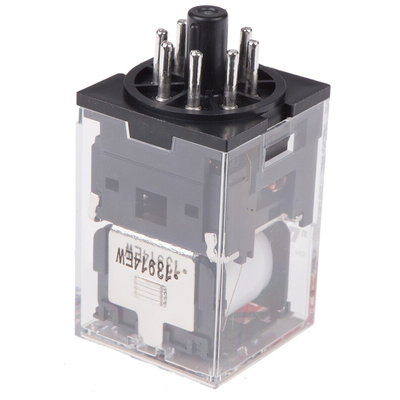

MKS2PIN AC230, Omron Plug In Power Relay, 230V ac Coil, 10A Switching Current, DPDT, Реле

Omron Relay

The Omron MKS series plug-in mount general-purpose non-latching relay has a contact configuration of DPDT. It is actuated with 230VDC coil voltage and 10A switching current. This relay has a mechanical indicator and lockable test button. This built-in mechanical indicator enables you to check contact operation.
Note:
When the relay is mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9A

Features and Benefits

Coil resistance is 4.25Kohm
Contact material is AgSnIn
Nameplate is provided on models with the latching lever
Operating temperature ranges between -40°C and 60°C
Terminal type is plug-in
Two modes can be used to check circuits for models with a latching lever

Certifications

CSA certified
TUV (IEC)
UL approved

MK-S Datasheet
