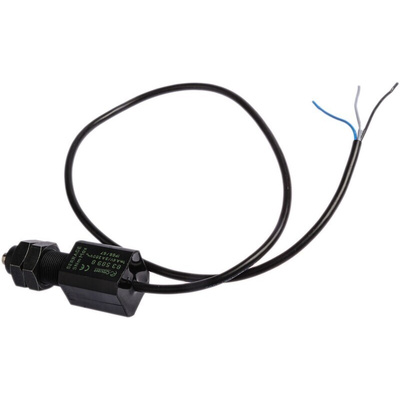

83589801, Crouzet Plunger Limit Switch, NO/NC, IP66, IP67, SP, Thermoplastic Housing, 250V ac Max, 5A Max

Limit Switch for Severe Environments with Cable

This dual-current limit switch is designed to operate on both dual current (1mA 4V min.) and medium current (5A) circuits and should only be used to switch one type of circuit during its working life.

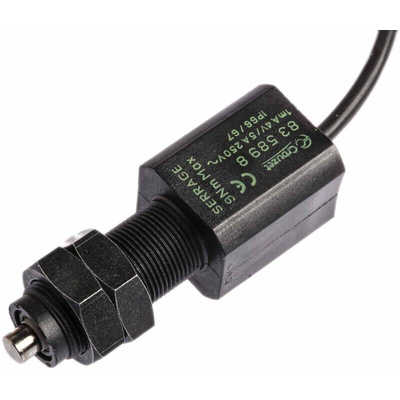

Press button protected by 'o' ring and scraper
8A at 250V
10 N operating force
15 N minimum total travel force
Differential travel 0.1mm, maximum travel 4.5mm

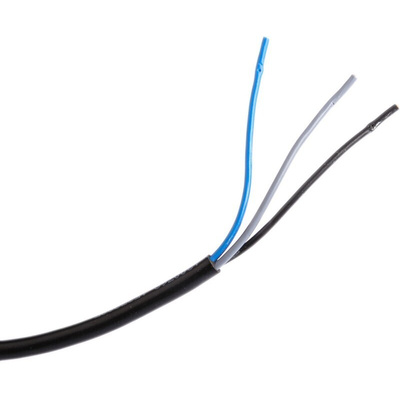

3 core cable (black,grey,blue) 0.5 metres in length with 0.75mm² conductors, PVC coated 5mm outer diameter
Temperature range -40 to +85° C
Single break two-way contact element
Mechanical life 10 000 000 operations
80 grams in weight

Note

Note: Mechanical life refers to 200mA at 24Vdc, and will reduce with higher currents and voltages.

Standards

NFC 20030 Class I
