2866475, Phoenix Contact TRIO-PS/1AC/12DC/5 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output,, Блок питания

Phoenix Contact TRIO Single Phase Power Supplies

The range of Trio, single phase power supplies from Phoenix Contact have been designed for DIN rail mounting and are suitable for worldwide applications that have a range of input voltages. The PSU has standard functionality and has adjustable output meaning that compensation can be made for long cable runs and battery charging applications.

The electrical and mechanical design of the primary switched power supply ensures that you have the reliability of all loads in the most challenging conditions.

Features and Benefits:

• Can be used on networks where the phases become imbalanced


• Withstands up to 300Vac input


• Temperature range -25 to +70°C


• Robust metal housing


• High Electric strength


• Minimize installation costs by using the third negative terminal block as a grounding terminal block


• High MTBF (mean time between failures) of more than 500,000 hours


• High dielectric strength of up to 300 V AC


• Quick installation thanks to a push-in connection


• Slim design


• Input for AC and DC voltage

Typical applications:

Can be used worldwide in all industrial sectors due to a wide-range input and an international approval package these include motors, valves, and solenoids.

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

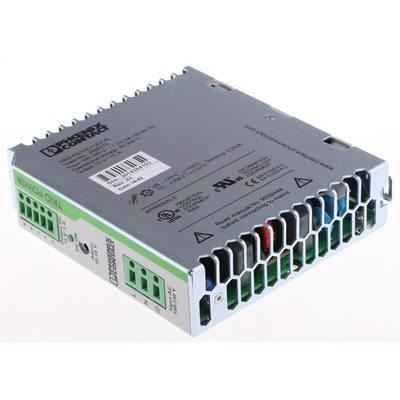

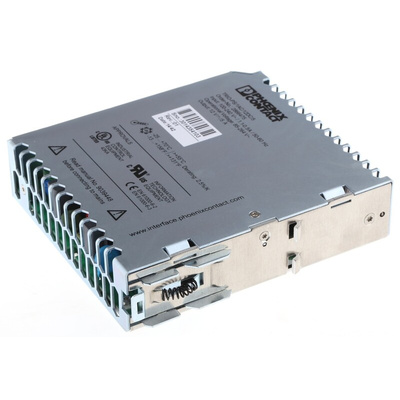

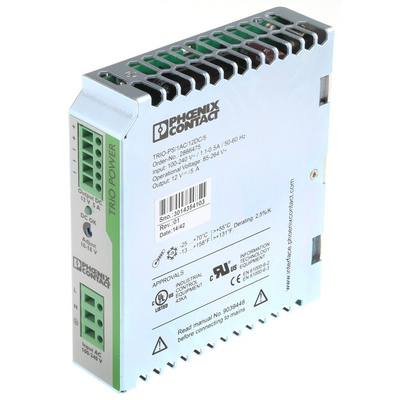

Phoenix Contact Single-Phase Power Supply, 12V DC, 5A - TRIO-PS/1AC/12DC/ 5 - 2866475

Reliably power your loads in challenging environments with this single-phase power supply unit from Phoenix Contact. It converts AC (alternating current) to a constant DC (direct current) supply and is a good choice for machine building applications. This is thanks to its robust design, which withstands harsh working conditions.
A high MTBF (mean time between failures) of more than 500,000 hours offers maximum operational reliability for improved production levels. Drops in voltage are compensated for and output is conveniently adjusted at the front of the unit. The power supply can be used to switch parallel electrical circuits, which means a number of systems can be independently operated at the same time.
This component is internationally approved and suitable for worldwide use with a wide input range of 85 to 264V AC. You can install it in outdoor control cabinets as it operates safely in a broad temperature spectrum of -20°C to +70°C.

Features & Benefits

• Fast response time to voltage fluctuations of 1s
• Complies with UL508 (Underwriters' Laboratories) safety standards for industrial control equipment
• Screw connections to securely hold conductors
• Good resistance to shock and vibration so suitable for use in rail applications

Datasheet 2866475

Phoenix Contact PSUs Overview

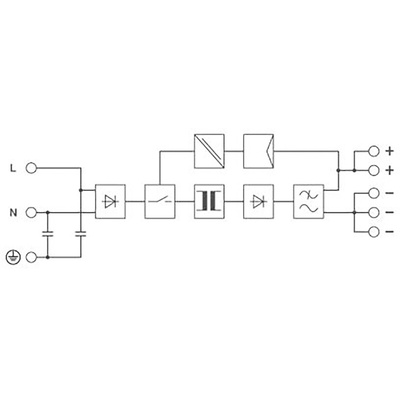

Line Drawing - 2866475
