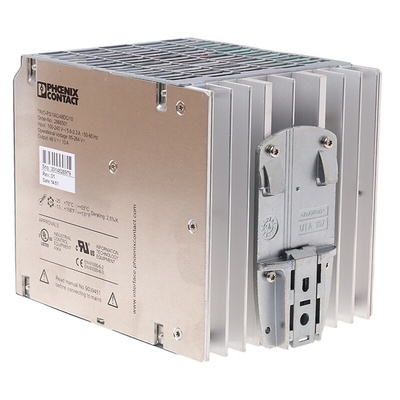

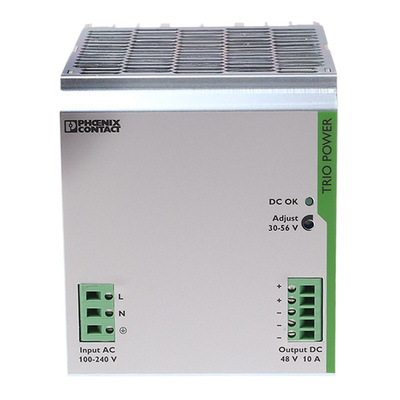

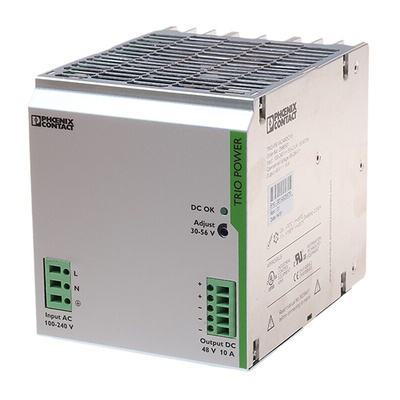

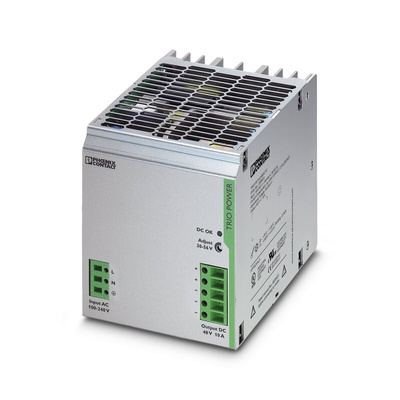

2866501, Phoenix Contact TRIO-PS/1AC/48DC/10 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 48V dc dc Output,, Блок питания

Phoenix Contact TRIO Single Phase Power Supplies

The range of Trio, single phase power supplies from Phoenix Contact have been designed for DIN rail mounting and are suitable for worldwide applications that have a range of input voltages. The PSU has standard functionality and has adjustable output meaning that compensation can be made for long cable runs and battery charging applications.

The electrical and mechanical design of the primary switched power supply ensures that you have the reliability of all loads in the most challenging conditions.

Features and Benefits:

• Can be used on networks where the phases become imbalanced


• Withstands up to 300Vac input


• Temperature range -25 to +70°C


• Robust metal housing


• High Electric strength


• Minimize installation costs by using the third negative terminal block as a grounding terminal block


• High MTBF (mean time between failures) of more than 500,000 hours


• High dielectric strength of up to 300 V AC


• Quick installation thanks to a push-in connection


• Slim design


• Input for AC and DC voltage

Typical applications:

Can be used worldwide in all industrial sectors due to a wide-range input and an international approval package these include motors, valves, and solenoids.

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

Phoenix Contact DIN Rail Power Supply, Single Phase, 10A Output - TRIO-PS/1AC/48DC/10 - 2866501

Keep your production machinery running reliably with this DIN rail power supply from Phoenix Contact. It works by converting an unstable input voltage into a regulated output. Thanks to its almost instant response time of 1ms, it's quick off the starting blocks when it comes to efficient operation.
An adjustable output means this PSU is just what you need to compensate for voltage dips over long cable runs. For enhanced performance, you can simply connect it in parallel with other units to step up your overall output capacity. The device holds its own in harsh settings thanks to a robust and corrosion-resistant metal housing.
As this unit accepts a wide input voltage range of 85 to 264V AC, it's a versatile choice. It includes a negative terminal block that you can use for grounding, giving you protection against electrical hazards. You'll find a power supply like this one used in security applications and climate control systems.

Features & Benefits

• Mean time between failures of more than 500,000 hours for long-lasting performance
• LED indicator makes monitoring and troubleshooting a breeze
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
