2866705, Phoenix Contact QUINT-PS/3AC/24DC/10 Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 10A Output,, Блок питания

Phoenix Contact QUINT POWER - Power supplies

The range of QUINT POWER from Phoenix contact are superior power supplies that provide a seamless experience as they're feature-packed with all necessary requirements and more. These power supplies maximise the availability of your plant by utilizing technologies such as NFC (Near field communication) so you can quickly configure these supplies from a smartphone, SFB (Selective Fusebreaking), 6-times nominal current for 12ms, extended life range of over 500,000 hours and super-reliable start in difficult loads with a static power reserve (POWERBOOST).

These brilliant power supplies are designed to be mounted onto a DIN rail and contain screw connections for your cables. Not to mention, these PSU's (Power supply unit) features a preventative function monitoring that allows the device to report on critical statues before any errors occur.

Features and benefits:

• Primary-switched


• Super-reliable power supplies come backed by over 500,000 hours of life


• Adjustable voltage ranges cover a vast spectrum of voltages.


• Fast tripping of standard circuit breakers wutg dynamic power reserve - 6 times to nominal current for 12ms


• Preventative function monitoring


• NFC technology allows you to easily configure the PSU (configure signalling thresholds and characteristic curves)


• Output of 24 VDC/20 A


• Slim design with a conformal coating to allow you to install it in extreme environments


• 93% efficient (for 230 V AC and nominal values)

How do I wire a DIN rail power supply?

The QUINTPOWER power supply unit's feature terminal blocks on both the top & bottom of the unit. You'll need to strip 7mm length from your cable and insert it into the terminal blocks. A simple screw connection (M4 screw) will then lock your cable into the terminal block, providing an output or input connection. However, please follow all manafactuer installation instructions.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

Note

665-7766, 665-7769, 665-7794 and 665-7790 do not feature SFB technology

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved, CSA, CB, ABS

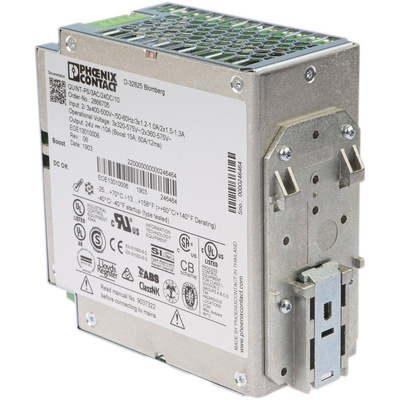

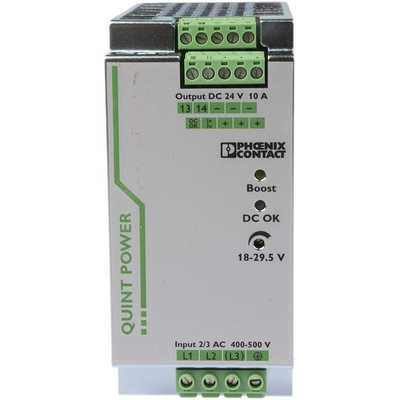

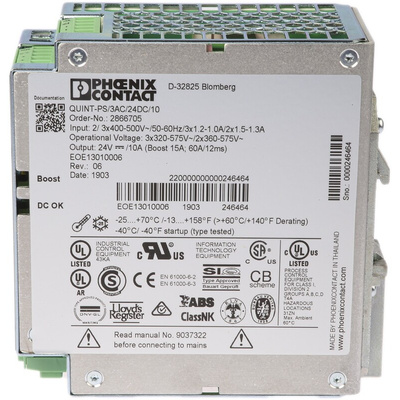

Phoenix Contact DIN Rail Power Supply, Switch Mode, AC to DC - QUINT-PS/3AC/24DC/10 - 2866705

This power supply from Phoenix Contact seamlessly converts incoming alternating current (AC) into 24 volts of direct current (DC). It's specifically designed to enable coordinated circuit protection on a DC power bus.
The power supply increases overall system availability, thanks to its selective fuse breaking (SFB) technology. This enables individual circuit protection to react to a short or over-current situation and prevent damage to other circuits on the DC bus. By providing a current impulse that's enough to trip a fuse or thermal-magnetic circuit breaker, it also lets you operate supplementary protection devices that are connected downstream of the power supply.
This DIN rail mount unit's near-field communication system gives you the option of configuring the power supply using a smartphone, for quick and convenient set-up. It's ideal for applications such as industrial process control and factory automation.

• Life range of over 500,000 hours
• Switch mode type
• Weight of 1.1kg
• Minimum input voltage of 320V AC
• Minimum output voltage of 18V DC
• Dimensions of 125 (L) x 60 (W) x 130mm (H)
• Operating temperature range of -25°C to +70°C
