2866734, Phoenix Contact QUINT-PS/3AC/24DC/5 Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 5A Output,, Блок питания

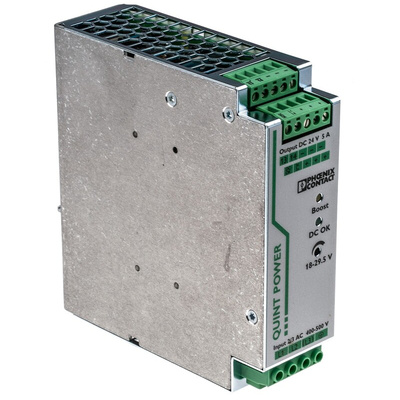

Phoenix Contact DIN Rail Power Supply, 4kV AC Isolation, Up to 89% Efficiency - QUINT-PS/3AC/24DC/ 5 - 2866734

Seeking a PSU with speedy circuit breaking built in? This DIN rail power supply from Phoenix Contact handles the job. As a three-phase unit, it accommodates very high loads, so it's a great shout for use in demanding industrial settings. It takes inputs between 320 and 575V AC or 450 and 800V DC and steps them down to a carefully controlled 24V DC ±1%.
As the unit offers output voltage adjustment, it's a breeze to tweak it to suit your application needs. You also have advanced preventative function monitoring watching your back, which means any critical operating states get flagged before faults can take hold.

Features & Benefits

• Isolation up to 4kV AC on inputs and outputs, so you and your equipment are protected against significant voltage surges
• Mean time between failures of over 1,290,000h at +25°C makes it a long-lasting option
• Efficiency of over 89% means it wastes very little energy as heat and stays cool without a heatsink or fan
• POWERBOOST static power reserve gives you a helping hand when starting load-drawing kit like motors
• Simply snaps onto a standard 35mm DIN rail without tools for easy installation

Datasheet 2866734

Instruction Sheet - 2866734

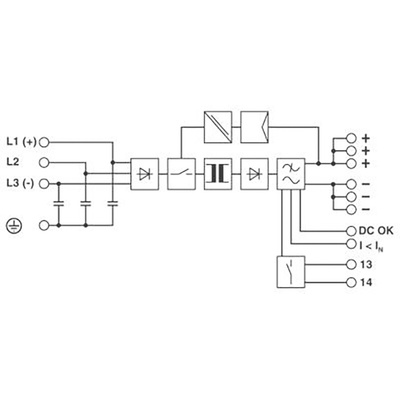

Line Drawing - 2866734
