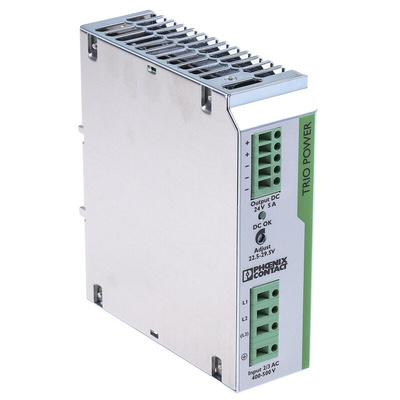

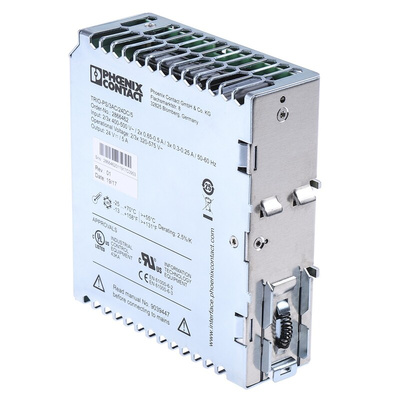

2866462, Phoenix Contact TRIO-PS/3AC/24DC/5 Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 5A Output,, Блок питания

Phoenix Contact TRIO-PS Three Phase Power Supplies

The range of Trio, primary switched, three phase power supplies from Phoenix Contact have been designed for DIN rail mounting and are suitable for worldwide applications that have a range of input voltages.
The PSU has standard functionality and has adjustable output meaning that compensation can be made for long cable runs and battery charging applications.
The electrical and mechanical design of the primary switched power supply ensures that you have the reliability of all loads in the most challenging conditions.

Features and benefits:

• Three phase means a reduction in wires required
• Push-in connections
• Output Voltage: 24Vdc
• Input voltage of 3 x 320 to 575 Vac
• Operating temperature range -25 to +70°C gives maximum flexibility
• Can be used on networks where the phases become imbalanced
• Withstands up to 300Vac input
• Tool-free fast connection technology for solid and stranded conductors with ferrule
• Slim design
• High vibration and shock resistance makes the device mechanically robust
• High electric strength
• Safer and less expensive to run
• Less safety risks to employees
• Greater conductor efficiency

Typical Applications:

The 3 phase PSUs are commonly used in areas such as power hungry and high density data centres, power grids as well as other electronic applications with a load that is greater than 1000 watts.

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

Phoenix Contact TRIO-PS/3AC/24DC/5 Series DIN Rail Power Supply, Three Phase, DIN Rail Mount - 2866462

This efficient DIN rail power supply by Phoenix Contact, the TRIO PS/3AC/24DC/5, offers a reliable power solution for industrial applications. With a power rating of 120 W and an output voltage of 24 V DC, this switch mode power supply ensures stable performance in various settings.

Features & Benefits

• High efficiency power supply with 89% efficiency
• Robust metal housing for durability
• Wide temperature range of 25°C to +70°C for versatile operation
• Wide input voltage range of 320 V AC to 575 V AC
• MTBF of over 500,000 hours for long term reliability

Applications

• Industrial automation systems
• Electrical equipment in manufacturing plants
• Control systems in mechanical engineering applications
• Powering sensors and actuators in electronics

Can it handle voltage fluctuations efficiently?

Yes, it is designed to handle varying input voltage ranges effectively.

Will it provide stable power output under extreme temperatures?

The DIN rail power supply ensures stable performance even in harsh environments with a wide temperature range.

Is it suitable for use in three-phase electrical systems?

Yes, this power supply is ideal for integration into three-phase setups for enhanced power distribution.

Can it be mounted easily on DIN rails?

It features a mounting type that is suitable for DIN rail installation, ensuring convenience during setup.

How does it address power supply reliability concerns?

With an electrical phase of 3 and an MTBF of 500,000 hours, this power supply prioritises reliability in industrial applications.
