2868567, Phoenix Contact STEP-PS/1AC/12DC/1.5 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output,, Блок питания

Phoenix Contact STEP POWER Single Phase Power Supplies (PSU)

The single-phase STEP POWER generation of compact power supply units from Phoenix Contact have a high degree of efficiency and the low standby losses make for high power efficiency. The PSU’s are available with 24 V DC output voltage in various performance classes and overall widths as well as special voltages 5, 12, 15, and 48 V DC.

These PSU's (Power supply units) have been designed more specifically for building automation, however, are not limited to explicitly that use. Low idling and maximum efficiency help to achieve higher energy efficiency. Not to mention, these power supplies have a DIN rail notch took out of the housing to allow you effortless install, on a DIN rail. DIN Rail power supply's are great for cable management, having everything in a single cabinet for consistent maintenance and ease of use.

Features and benefits:

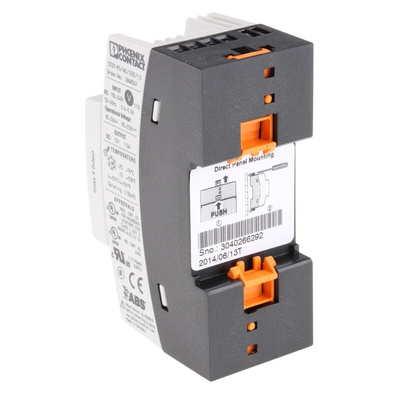

• Easy mounting by snapping on the DIN rail or screwing onto a level surface
• Maximum energy efficiency through small losses
• Reliable power supply thanks to high MTBF (mean time between failures) of more than 500,000 hours and U/I characteristic curve
• Fast commissioning with LED function monitoring
• High operational safety by long power failure under full load
• Worldwide use by wide-range intake and international approval package
• Wide temperature range from -25 ° C to +70 ° C
• Parallel switched to increase performance and redundancy
• Outdoor installation possible
• Energy savings thanks to maximum energy efficiency and incredibly low idling losses

Typical applications:

The design of the PSUs makes them suitable for installation distributors and flat control panels. More specifically, these STEP POWER PSU's have been designed to cater for building automation applications.

How to install a DIN Rail Power Supply?

DIN rail power supplies typically feature an easy install. With the ability to mount it onto a compatible DIN rail, all you usually have to do is slide it onto one. These STEP DIN rail power supply's support NS 35 (EN 60715) rails. Once you've slid your power supply onto your rail, it is then a case of connecting your cables into the relevant inputs and outputs. Wires must be stripped 6.5mm before inserting into the terminal blocks. The terminal blocks are an effortless screw connection, making your install simple.

What is a DIN rail power supply?

Effectively, a DIN rail power supply is a power supply, that is designed to be put on a DIN rail. These power supplies cater to the industrial world, rather than consumer electronics. They feature different connection methods such as terminal block connections rather than your typical 3-pin socket power. DIN Rail PSU's are designed to sit inside cabinets and work hand-in-hand with providing higher efficiency for industrial applications.

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

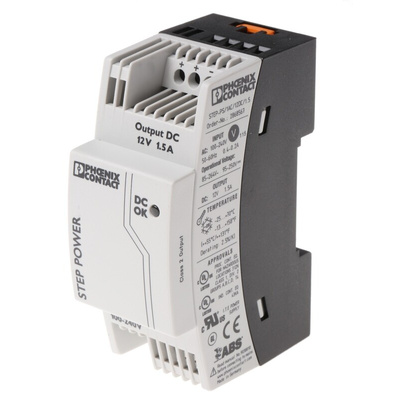

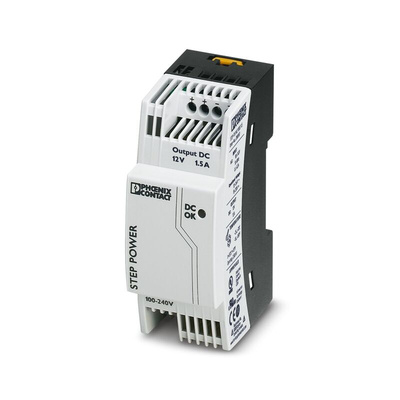

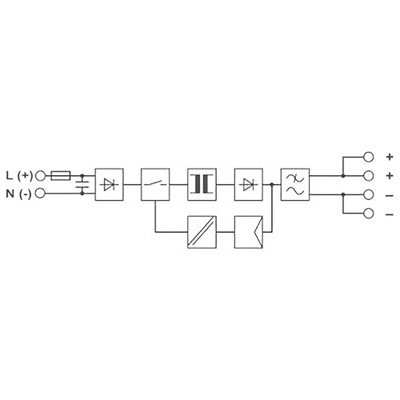

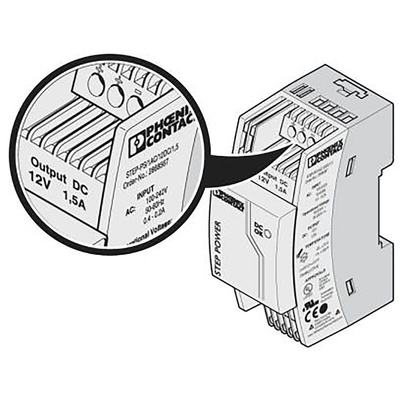

Phoenix Contact STEP-PS/1AC/12DC/1.5 Series DIN Rail Power Supply, Single Phase, DIN Rail Mount - 2868567

This compact Phoenix Contact 12V DC power supply provides reliable power for various applications, especially in the fields of automation, electronics, electrical, and mechanical industries. With a power rating of 18W and an efficiency of over 84%, this DIN rail power supply ensures optimal energy efficiency and performance.

Features & Benefits

• Input voltage range from 100V AC to 240V AC, suitable for different electrical systems
• Nominal output voltage of 12V DC with 1.5A output current for consistent power supply
• Compact design with DIN Rail Mount for easy installation and space saving solution
• High MTBF of more than 500,000 hours ensuring long term reliability
• Switch mode power supply for efficient energy conversion
• Single phase power supply for versatile compatibility
• Ripple and noise of 75mV pk for stable output power
• Maximum temperature of +70°C for reliable operation in various environments

Applications

• Ideal for use in building automation systems
• Suitable for power distribution boards in industrial settings
• Perfect for electronic devices that require a reliable power source

Can it provide a consistent 12V DC output for electronic equipment?

Yes, the Phoenix Contact 12V DC power supply ensures a steady output voltage for various applications.

Will it work in a single-phase electrical system?

Yes, this power supply is compatible with single-phase power systems for seamless integration.

Is it suitable for industrial automation applications?

Yes, the STEP-PS/1AC/12DC/1.5 is designed to meet the demands of industrial automation systems.
