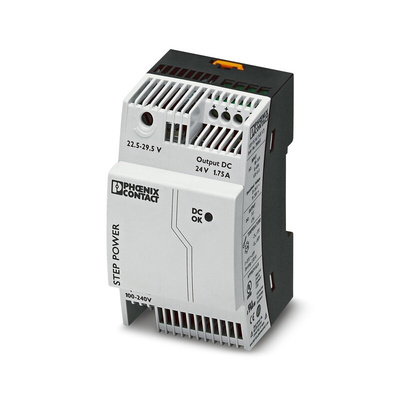

2868648, Phoenix Contact STEP-PS/1AC/24DC/1.75 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc, Блок питания

Phoenix Contact DIN Rail Power Supply, 500,000h MBTF, Up to 89% Efficiency - STEP-PS/1AC/24DC/1.75 - 2868648

When your automation task calls for a steady source of power, opt for this DIN rail power supply from Phoenix Contact. With a 42W power rating and output voltage of 24V DC, it's a reliable and regulated energy source. The unit accepts versatile inputs between 85 and 264V AC, making it widely compatible with standard setups.

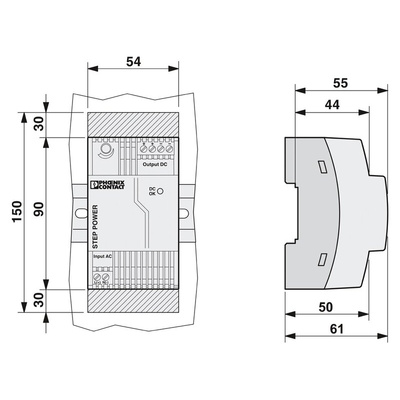

The device saves energy thanks to low idling losses when it's on standby. This gives it an efficiency rating of at least 89%. Compact dimensions of 90 (H) x 54 (W) x 61mm (D) mean it fits easily into a crowded control cabinet. As it comes with a DIN rail notch, it's a snap to slide it onto your rail. You can then connect cables to the relevant inputs and outputs, for fuss-free installation in distributors and flat control panels.

Features & Benefits

• LED function monitoring shows you the power supply's status at a glance
• High mean time between failures of over 500,000 hours to deliver long-term service
• Broad operating temperature range between -25°C and +70°C means it stands up to challenging environments
• IP20 rating indicates it's touch-proof and protected from small tools and wires

Datasheet 2868648

PSU Manual

Instruction Sheet - 2868648

Line Drawing - 2868648
