XAPJ1201SPEC0971, Schneider Electric Harmony XAP Push Button Control Station -

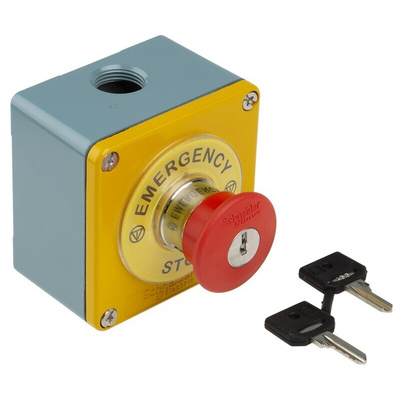

Schneider Electric Emergency Stop Button - Harmony XAP Series

The Harmony XAP series from Schneider Electric offers you complete robustness and reliability in an emergency stop button, giving you the reassurance of controlling any emergency type event. This die-cast, zinc alloy control station is sturdy, reliable and durable in several different environments.

Features and benefits

• Blue, yellow and red colouring with 'Emergency Stop' decal prominently written to display function to users.
• Easy to maintain Zinc-alloy material, strong, durable and cost-effective.

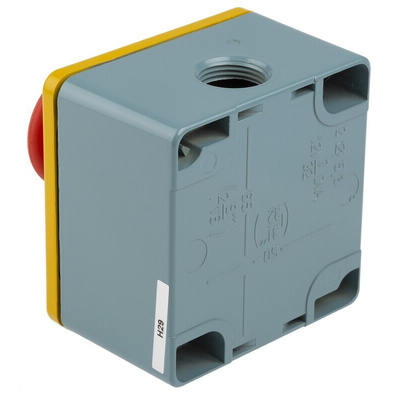

• Effortless cable entry with 1 hole with a blanking plug and 1 hole without.
• Compact and lightweight in nature, making panel mounting simple.
• Designed for 22 mm control and signalling units.
• Functions additionally as an on, off & on-off as well as an emergency stop button, depending on your requirements. Protection ratings -
• IP 65 rated (protected from total dust ingress, as well as low-pressure water jets from any direction).
• Ambient air temperature for operation from -25°C to 70°C

Applications

• Machine manufactures such as car, textile or timber
• Service sectors such as restaurants, public works, building, airports

Note

546-644 Schneider Electric Harmony XAP Key Button Control Station
546-648 Schneider Electric Harmony XAP Turn Button Control Station

Schneider Electric Turn Button Control Station, Flush Mounting, Twist Head Style - Harmony XAP Series - XAPJ1201SPEC0972

Need a quick-fire way to hit the brakes in an emergency? Add this turn button control station from Schneider Electric to your setup. Thanks to its IP65 and IP67 ratings, it's completely sealed from damaging elements like dust and water to safeguard sensitive wires. The zinc enclosure is highly durable and coated with a TC protective treatment to give you best-in-class resistance against corrosion. Thanks to its wide operating temperature range between -25°C and +70°C, you can count on this product in demanding indoor and outdoor applications.

Features & Benefits

• 'Emergency Stop' written directly on the panel for easy visibility
• Compact dimensions of 80 (W) x 80 (L) x 49mm (D) so it takes up minimal space on your control panel or wall
• Blanking plug at cable entry seals out dust and debris to protect wires

Applications

• Energy sector
• Public works industry
• Aerospace technology
• Distribution centres

How do I release this button?

Twist the button in the direction of the arrow on the button head to release it after actuation. This extra step prevents accidental resetting.
