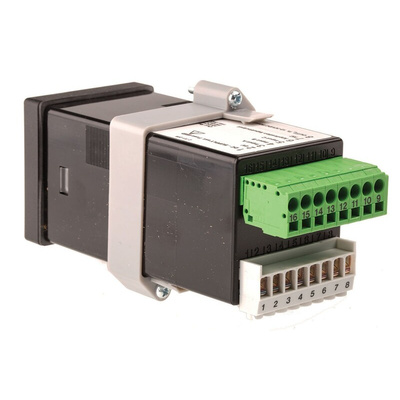

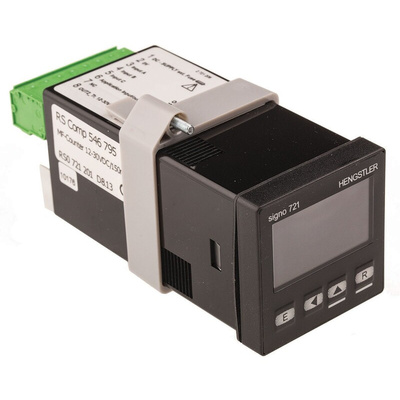

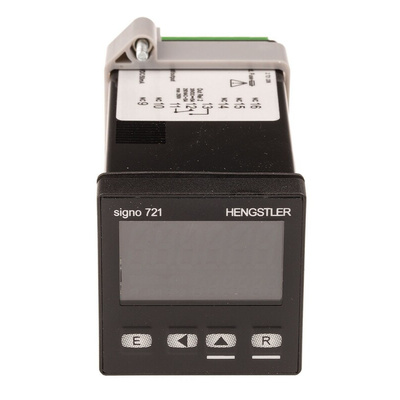

0 721 201, Hengstler SIGNO 721, 5 Digit, LCD, Counter, 60kHz, 12 → 30 V dc, Счетчик

Preset Counter - Signo 721.2

Single or dual preset counter
IP65 rated
Counting Operating modes -one channel add or subtract; Direction mode; differential mode (add/sub); totalizing mode (add/add); phase discriminator
Programmable reset back to 0 or back to preset 2 (externally resettable)
Overwriting of counter reading is possible
Keylock can be absolute or separately set to allow correction and/or prescaler
Please Note: The highest count frequency of 60 kHz can only be reached at a special calibration and parameter, this is otherwise quoted to 30 kHz

Note

Please Note: The highest count frequency of 60 kHz can only be reached at a special calibration and parameter, this is otherwise quoted to 30 kHz

Approvals

UL, CSA

Hengstler Panel Mounting 48 x 48

Range of resettable counters with data retention rated at greater then 10 years. Prescaler options and Multiplier scaling outputs for correctly displaying engineering units. Units have a maximum count frequency of either 30Hz or 5kHz depending on setting. Inputs are either NPN/PNP signal or contact closure.

Datasheet
