0 721 205, Hengstler SIGNO 721 Counter, 5 Digit, 60kHz, 12 → 30 V dc, Счетчик

Hengstler Digital Counter

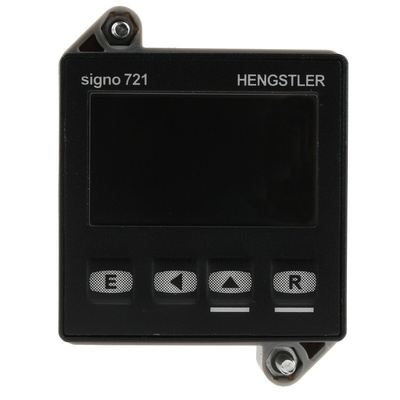

The Hengstler Signo 721 series counter is a 5-digit backlit LCD display, dual preset, totalising digital counter. This counter has a supply voltage rating ranging between 12VDC and 30VDC. Counting operating modes are one channel add or subtract
direction mode, differential mode (add/sub), totalizing mode (add/add), and phase discriminator.

Note
Please Note: The highest count frequency of 60 kHz can only be reached at a special calibration and parameter, this is otherwise quoted to 30kHz

Features and Benefits

Easy installation due to pluggable terminals
LCD reflective or backlit
Manual reset via keyboard
Overwriting of counter reading is possible
Keylock can be absolute or separately set to allow correction and/or prescaler
Maximum count frequency of 60KHz
Prescaler option - multiplier programmable from 0.0001 - 9.9999

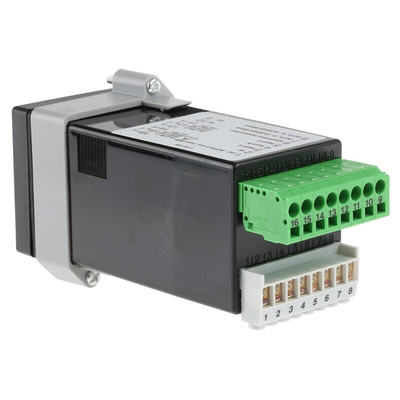

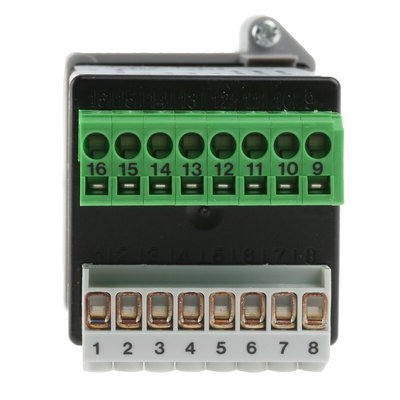

Plug-in screw terminal connection
Impressive, clearly readable display
Front dimensions is 48mm x 48mm
Operating temperature ranges between 0°C and 50°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly line

Certifications

UL approved
CSA certified
2, EN 50178
EN 61326-1 Class B

Signo 721 Vorwahlzähler/Preset counter; Benutzerhandbuch/Operating Instructions

Datasheet - 0 721 205
