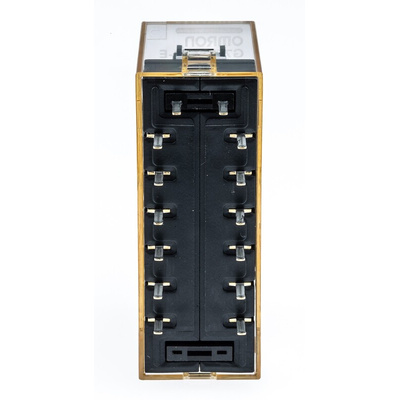

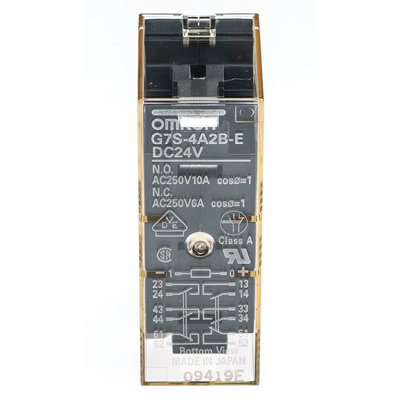

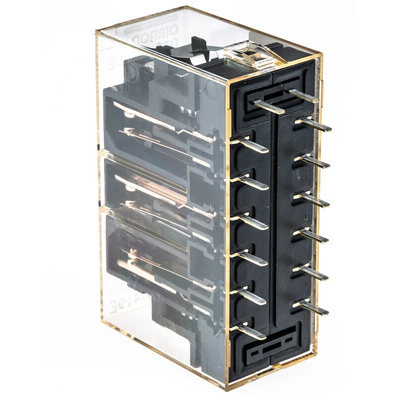

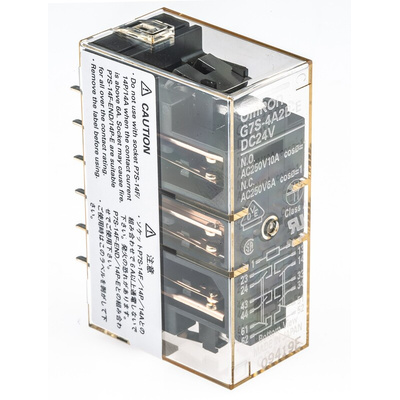

G7S-4A2B-E DC24, Omron PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 4PST, DPST, Реле

10A, 6A Relays with Forcibly Guided Contacts - G7SA

The G7S-A relays are slimline with forcibly guided contacts with a 10 Amp rating for NO Contact and 6A for NC. They are available as six-pole types with two contact configurations. It can be soldered directly to a PCB or used together with the P7S socket for panel installations.

Forcibly guided contacts
10A at 240VAC and 10A at 24VDC for resistive loads
14 pins
800 Ω contact resistance
Reinforced insulation between inputs and outputs and poles
Sealing: unsealed
Operating temperature: -25 to 70C

Note

Stock number 584004 is Track Mounted Socket

Standards

Conforms to EN 50205

Approvals

UL, CSA

OMRON Force Guided Relay, Through-Hole Mounting, 1000MΩ Insulation Resistance - G7S Series - G7S-4A2B-E DC24

When safety and reliability have equal priority, reach for this force guided relay from OMRON. Its 6-pole configuration means it can control multiple circuits simultaneously, saving space and boosting productivity. The unit features reinforced insulation between its inputs, outputs and poles, so your fingers don't come in contact with live parts, and you're protected from any shocking surprises.You can trust it to operate safely in challenging conditions, thanks to a broad temperature range of -25°C to +70°C. The device is commonly used in mechanisms controlling escalators and lifts.

Features & Benefits

• PCB mounting achieves a firm and vibration-proof attachment to equipment
• Weighs just 65g so it won't put strain on your setup
• Mechanical lifespan of 10 million operations for long-lasting performance
• Low power consumption of 800mW ensures energy efficiency
• Can be assembled in any direction, for versatility

Applications

• Hospitality industry
• Food and beverage production
• Oil and gas plants

How do I maintain this component?

To keep it fighting fit, you should clean the relay gently with a microfibre cloth. As it has an unenclosed construction, don't wash it with water or detergent and keep away from direct water sprays.
