P7SA-14F-ND DC24, Omron P7SA 14 Pin 24V dc DIN Rail Relay Socket, for use with G7SA Series, Контактная колодка

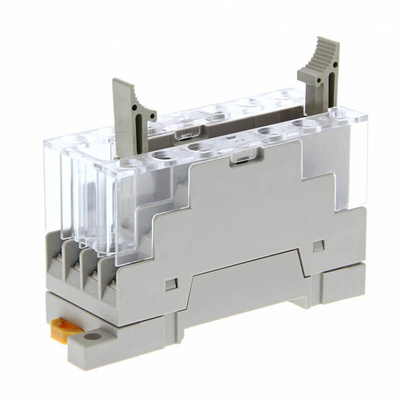

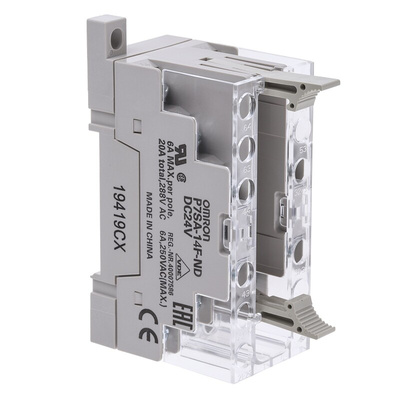

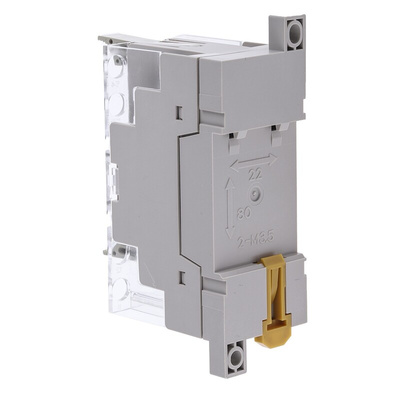

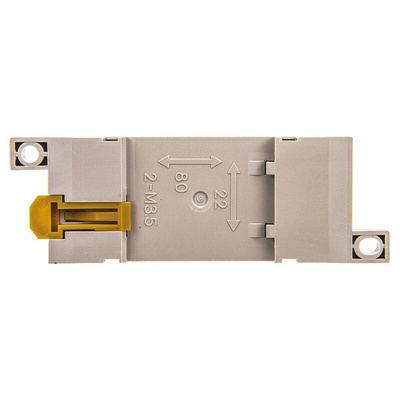

OMRON Relay Socket, Push-In Plus Terminals, Front Mounting - P7SA-14F-ND DC24

Keep relays connected to your electrical system with this relay socket from OMRON. Its 6-pole configuration means it can control multiple circuits, so it fits the bill for enclosures with limited space. A built-in diode keeps your equipment safe by absorbing sudden coil surges. Keeping an eye on the unit's status from a distance is easy, thanks to a handy LED indicator that also provides visual feedback. You can use this component with relays in the G7SA series (such as 548-032), which are commonly found in systems including wind turbines and solar panels.

Features & Benefits

• Compatible with solid or stranded wires for versatility
• Tightening torque between 0.78 and 0.98Nm ensures secure and vibration-resistant installation
• Compact dimensions of 104 (H) x 27.7 (W) x 65.5mm (D) take up minimal space in your setup
• Low weight of 59g won't put a drag on your DIN rail

Applications

• Automotive industry
• Marine equipment
• Oil and gas plants
• Renewable energy sector

What's the dielectric strength of this socket?

This component has a dielectric strength of 2500V AC, so you can rest assured it's properly insulated to protect you against electric shocks.
