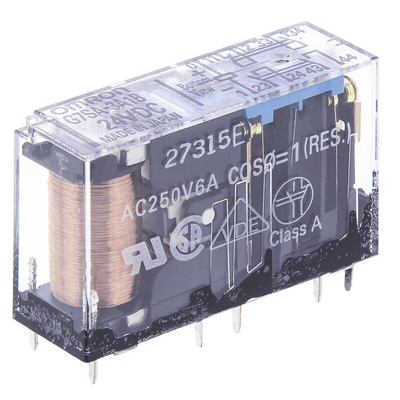

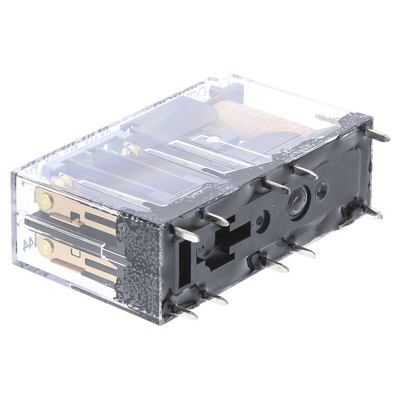

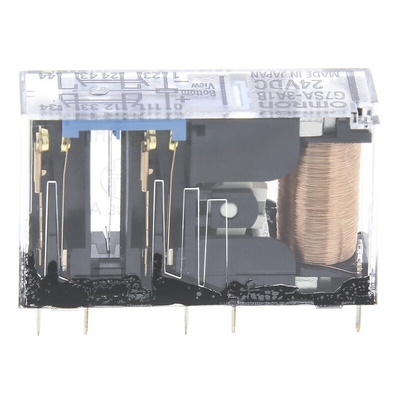

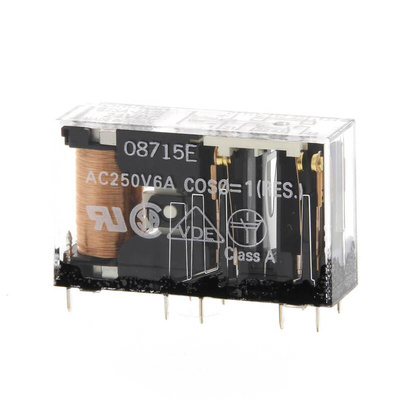

G7SA-3A1B DC24, Omron PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, 3PST, SPST, Реле

6A Relays with Forcibly Guided Contacts - G7SA

The slimline G7SA relay family with forcibly guided contacts is available as a four- or six-pole type in various contact combinations and offers reinforced insulation. Terminals are arranged for easy PCB layout. It can be soldered directly to a PCB or used together with the P7SA sockets for panel installations.

Forcibly guided contacts
6A at 240VAC and 6A at 24VDC for resistive loads
Reinforced insulation between inputs and outputs and poles
4- and 6-pole relays available
Sealing: flux-tight
Operating temperature: -40 to 85C

Standards

Conforms to EN 50205

Approvals

UL, CSA

OMRON Force Guided Relay, 4000V AC Dielectric Strength, PCB Mounting - G7S Series - G7SA-3A1B DC24

Need a way to keep tabs on the circuits in your machinery? Count on this force guided relay from OMRON. It has a safety design that monitors your system and powers it down in the event of a hazard, helping prevent accidents. The gold-plated silver contacts are highly conductive and corrosion-resistant, so you get reliable performance even in damp settings. To support long-term use, flux-tight sealing prevents damage from external contaminants. A low current rating of 15mA means the component is an energy-saving choice for use anywhere from lighting systems to automated doors.

Features & Benefits

• Performs reliably in a wide operating temperature range between -40°C and +85°C
• Through-hole termination achieves a secure and vibration-proof attachment to machinery
• Light weight of 22g so it won't strain your PCB
• 4-pole configuration to streamline your equipment
• Insulation resistance of 1000MΩ for protection against electric shocks

Applications

• Automotive industry
• Power plants
• Chemical processing factories

What's the lifespan of this relay?

The component has a mechanical lifecycle of 10 million operations, so you can count on it to perform for the long run.
