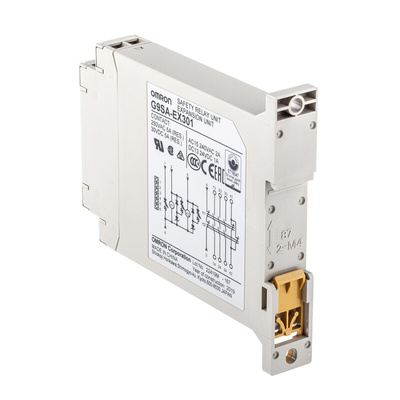

G9SA-EX301, Omron G9SA Series Output Module, 0 Inputs, 2 Outputs, 24 V dc, 3NO/1NC, Модуль

Omron Safety Relay Module

The Omron G9SA series safety relay module has 3PST-NO/1SPST-NC contacts normal state configuration. It offers a line-up of compact and expandable safety relay units. The modules with safe off-delay timing are available, as well as a 2-hand controller. Simple multiplication of safety contacts is possible by using the connection on the front.

Features and Benefits

45mm wide housing, expansion units are 17.5mm wide
Both DIN mount and screw mount are possible
Safe off-delay timer model with 1 second and 15 seconds delay
Simple expansion connection

Certifications

EN954-1
EN60204-1
EN574 (-TH301)
UL508 approved
CSA C22.2 No. 14

Machine Guarding and Safety Range Overview
