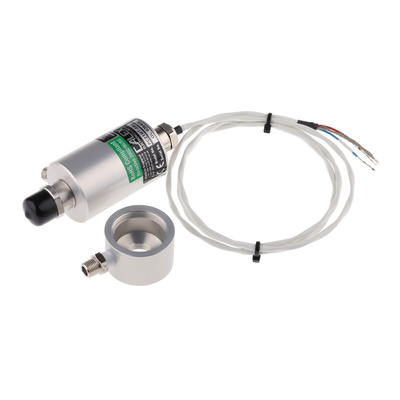

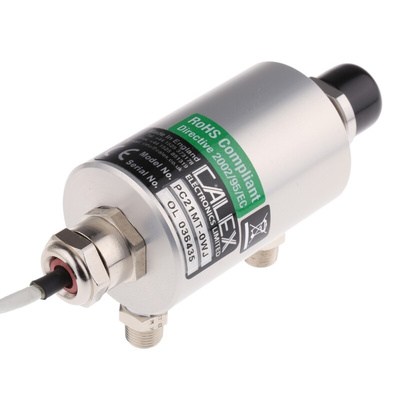

Calex PC21MT-0WJ mA Output Signal Infrared Temperature Sensor, 1m Cable, 0°C to +250°C, Датчик температуры

0553327
Номер производителя: PC21MT-0WJПроизводитель: Calex
Цена за шт.
107976.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

High Performance PyroCouple Series

High quality, low cost, non-contact Infra-red temperature sensors suitable for measuring the temperature of inaccessible or moving objects and materials.

Fast response with high stability
Types available with air/water cooled housings
Quick and easy to install
Available as either two-wire or four-wire units
240 ms to 90% response time
Stainless steel housing
M16 x 1 mm mounting thread
Prewired 1 m cable connection
6 V dc minimum sensor voltage
0.95 emissivity
Temperature change varies by model

Two-wire sensors transmit the target temperature as a 4-20 mA output and offer a simple solution for most non-contact temperature measurement applications.

Four-wire sensors transmit the target temperature as a 0-50 mV or thermocouple output, and in addition transmit the internal temperature as a 4-20 mA output. This second output can be used to ensure that the sensor is being operated within the correct ambient temperature limits and prevent damage caused by overheating or overcooling. It can also be used to give an approximate indication of the air temperature surrounding the sensor.

Техническая спецификация
pdfPyrocouple Data Sheet
pdfNon-Contact Temperature Sensor Selection Guide
pdfImportant - COVID-19 Information
Время отклика:
240 мс
Диаметр:
16 мм
Кабель - длина:
Максимальная температура зондирования:
+250°C
Минимальная температура зондирования:
0°C
Тип выхода:
Тревога, Аналоговый
Тип датчика:
MA Выходной сигнал
Точность:
1 %
