890.120.68, Werma BWM 890 Series Red Steady Beacon, 115 → 230 V ac, Base Mount, LED Bulb, IP65, Маячок

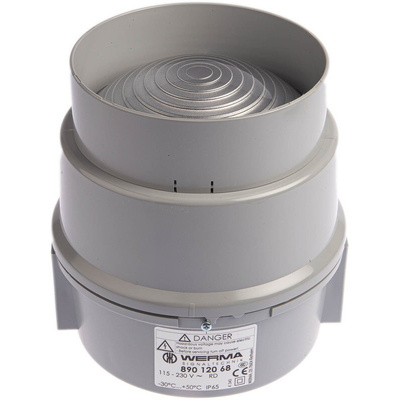

WERMA Red Steady LED Beacon, 230V AC Voltage Rating, Base Mounting - BWM 890 Series - 890.120.68

Need a warning signal that's clearly visible, even in direct sunlight? Choose this red LED beacon from WERMA. You can use it on its own or mount up to three different beacons in sequence for traffic light-style signalling using fixing brackets (554-746). A simple spring-type terminal connection makes installation easy. You can also use adhesive stickers (382-7077) to label your beacon lens for greater ease of use.

Features & Benefits

• Wide operating temperature range of -30°C to +50°C for use in demanding environments
• Light weight of 490g to minimise strain on your mounting surface
• IP65 rating means it's dust-tight and protected against low-pressure water jets

Applications

• Factory floors
• Construction sites

Where's the cable entry on this beacon?

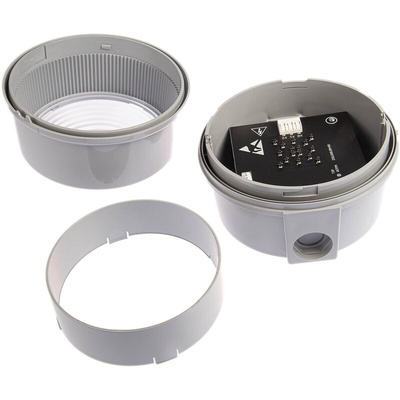

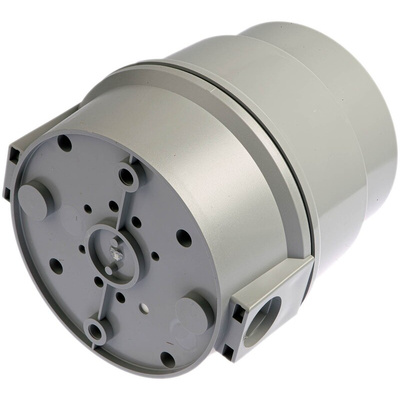

For ease of assembly, the cable enters from the top or bottom via an M20x1.5mm cable gland, or from the back via a 6 to 12mm rubber grommet.

Series 890/895/897 User Instructions (multilanguage)

Datasheet

Datasheet - 890.120.68
