901-10387, HellermannTyton Helagrip Slide On Cable Marker Kit, Black, Blue, Brown, Green, Grey, Orange, Red, Violet, White,

0557017
Номер производителя: 901-10387Производитель: HellermannTyton
Цена за шт.
30256.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

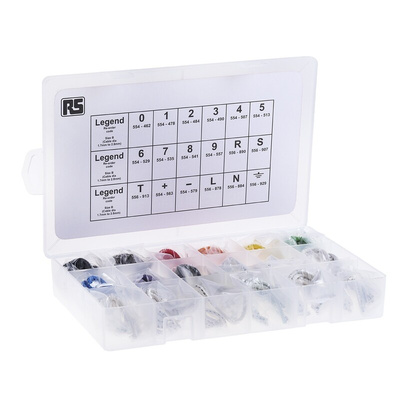

HellermannTyton Helagrip Cable Marker Kit

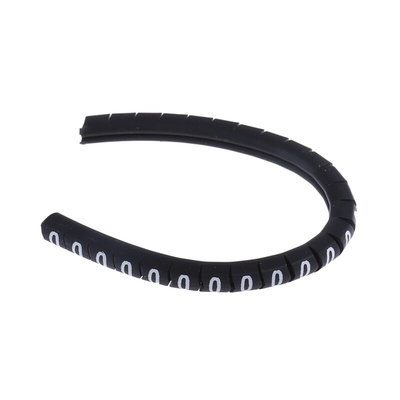

Specially designed for marking Helagrip fit a wide range of cable diameters 2.5mm to 4.8mm, this kit features the chevron cut end markers for lock alignment of legend series.

Featuring 4500 individual markers the kit includes 250 of each different legend, there are 18 legends in total. Colour coded numbers include 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, and printed black on white letters L, N, R, S, T, +, - and earth. Manufactured from a high grade PVC compound the markers are durable and flexible, with a UL94 Vo (3mm) flammability rating. Application before termination is recommended for optimal cable labels.

Features and Benefits:

• Chevron cut for interlocking
• Flexible to fit securely on wires
• One size for a range of cables
• Kit box dimension 180mm x 275mm

Frequently asked questions:

How do you use cable markers?
Specifically designed for identifying cables, cable markers are essential in conduit and bundles. They not only assist engineers and technicians with identifying wires or cables, but they also assist with health, safety and effective maintenance.

How you use a cable marker can vary, as their method of application can differ. Adhesive and self-laminating are generally used for terminated wires, they wrap around the wire with a clear protective layer. Clip and slide on labelling are generally colour coded or pre-printed with letters, numbers and symbols. The single characters can also be combined to create a legend. Some are straight, some are chevron shaped. Whilst slide on markers need to be applied pre-termination, clip-on can be applied after termination. Heat shrink, shrunk to fit the cable are flexible, durable and do not fall off. Tie on tags or markers can generally be used on larger bundles.
RS offers a large range of cable ties, markers, labels and kits.

Note

557-017 is for sizes 1-3mm, 557-023 is size 2-5 mm

HellermannTyton Cable Marker Kit, 4500 Markers, PVC Marker Material - Helagrip Series - 901-10387

Use this cable marker kit from HellermannTyton to spot wires in your machinery at a glance. The kit is made up of colour-coded pieces with 18 different letters, numbers and symbols, so you can label your connections and get your setup organised. As the markers are made of PVC, they stand their ground against chemicals and wear to deliver long-term performance in harsh environments. They accommodate cable diameters between 1 and 3mm for versatility.

Features & Benefits

• Kit contains 4500 pieces, so you have enough for lots of complex jobs
• Storage box has internal dividers to keep the pieces in their place
• Markers perform reliably in challenging settings, thanks to a wide operating temperature range between -65°C and +105°C

Applications

• Medical equipment
• Telecommunications networks
• Bottling plants

Are these cable markers flame-resistant?

Yes, these cable markers self-extinguish in 10 seconds or less to prevent the spread of flames in the event of a fire.

Техническая спецификация

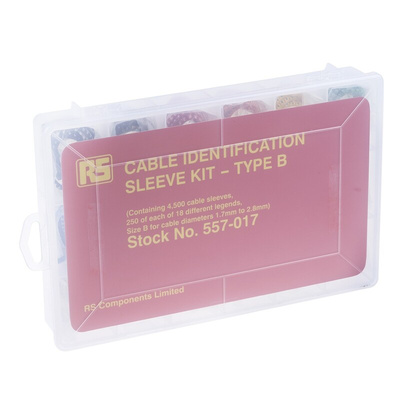

pdfCable Identification Sleeve Kit Type B
pdfDatasheet
Версия для печати:
Нет
Встречающиеся стандарты:
UL 94 V-0
Диапазон диаметра кабеля:
1 → 3мм
Диапазон рабочих температур:
-65 → +105 °C
Длина:
3.5мм
Для использования с:
Cables & Wires
Количество:
4500
Комплект включает в себя:
Cable Markers and Storage Box
Легенда:
-, +, 0 → 9, Earth, L, N, R, S, T
Максимальный диаметр кабеля:
2.8мм
Материал:
ПВХ
Метод нанесения:
Slide On
Минимальный диаметр кабеля:
1.7мм
Рабочая температура - максимальная:
+105°C
Рабочая температура - минимальная:
-65°C
Серия:
Helagrip
Характеристика горения:
Самозатухающийся
Цвет:
Black, Blue, Brown, Green, Grey, Orange, Red, Violet, White, Yellow
