901-10388, HellermannTyton Helagrip Slide On Cable Marker Kit, Black, Blue, Brown, Green, Grey, Orange, Red, Violet, White,

HellermannTyton Helagrip Cable Marker Kit

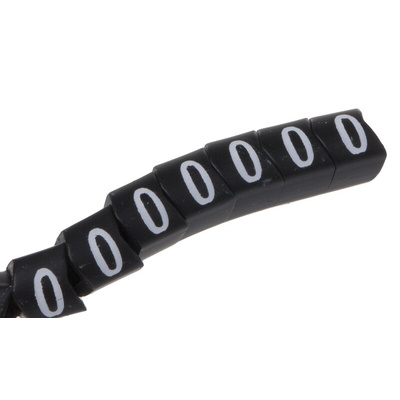

Specially designed for marking Helagrip fit a wide range of cable diameters 2.5mm to 4.8mm, this kit features the chevron cut end markers for lock alignment of legend series.

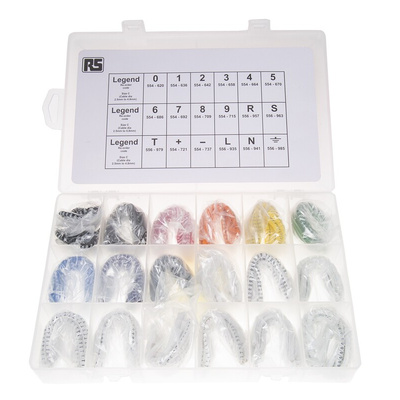

Featuring 4500 individual markers the kit includes 250 of each different legend, there are 18 legends in total. Colour coded numbers include 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, and printed black on white letters L, N, R, S, T, +, - and earth. Manufactured from a high grade PVC compound the markers are durable and flexible, with a UL94 Vo (3mm) flammability rating. Application before termination is recommended for optimal cable labels.

Features and Benefits:

• Chevron cut for interlocking
• Flexible to fit securely on wires
• One size for a range of cables
• Kit box dimension 180mm x 275mm

Frequently asked questions:

How do you use cable markers?
Specifically designed for identifying cables, cable markers are essential in conduit and bundles. They not only assist engineers and technicians with identifying wires or cables, but they also assist with health, safety and effective maintenance.

How you use a cable marker can vary, as their method of application can differ. Adhesive and self-laminating are generally used for terminated wires, they wrap around the wire with a clear protective layer. Clip and slide on labelling are generally colour coded or pre-printed with letters, numbers and symbols. The single characters can also be combined to create a legend. Some are straight, some are chevron shaped. Whilst slide on markers need to be applied pre-termination, clip-on can be applied after termination. Heat shrink, shrunk to fit the cable are flexible, durable and do not fall off. Tie on tags or markers can generally be used on larger bundles.
RS offers a large range of cable ties, markers, labels and kits.

Note

557-017 is for sizes 1-3mm, 557-023 is size 2-5 mm

HellermannTyton Cable Marker Kit, PVC Marker Material, 2 to 5mm Cable Diameter Range - Helagrip Series - 901-10388

Get to grips with wire organisation using this cable marker kit from HellermannTyton. The pieces in the set are labelled with different numbers, symbols and letters for convenient identification of your connections. For flexibility, you can use the markers on cables ranging in diameter between 2 and 5mm. A durable PVC construction means they're resistant to chemicals and abrasion, making them a safe bet for use in harsh environments.

Features & Benefits

• Package contains 4500 pieces, so you have plenty at hand for multiple jobs
• Burning stops in 10 seconds or less for safety in the event of a fire
• Compartmentalised storage box for convenient portability and organisation

Applications

• Oil and gas plants
• Pharmaceutical manufacture
• Residential wiring

How do I attach a marker to a cable?

You should slide the marker onto your cable before termination to achieve a permanent labelling solution.

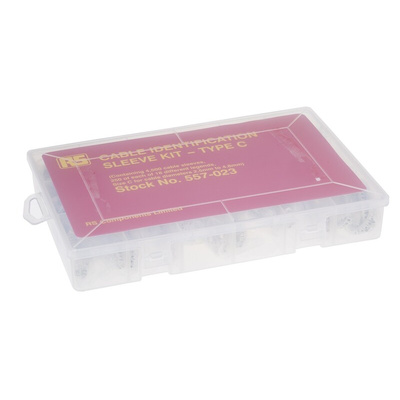

Cable Identification Sleeve Kit Type C

Datasheet

Datasheet
