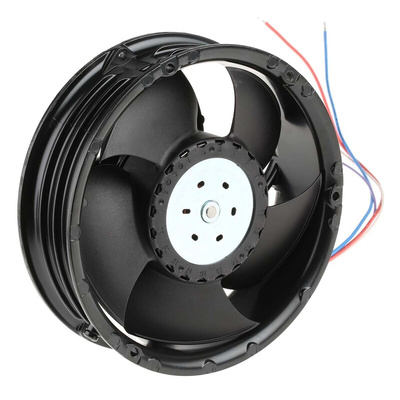

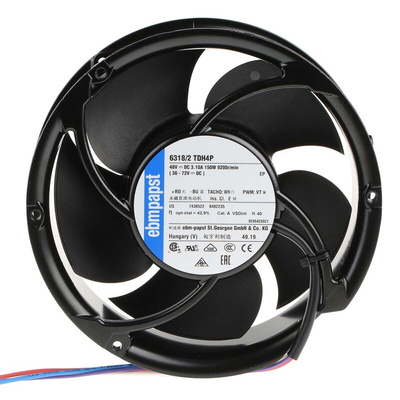

6318/2TDH4P, ebm-papst 6300 TD - S-Force Series Axial Fan, 48 V dc, DC Operation, 950m³/h, 150W, 172 x 51mm, Вентилятор

S-Force High Performance Compact Fans

The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications. This fan series is particularly suitable for the cooling of high-performance electronic components, such as those in servers, TCA systems, telecommunication devices, inverter drives and many other industrial applications.

• Performance from 600m³/h to a maximum of 930m³/h, depending on model
• PWM control input
• Open-collector tachometer signal output as standard
• Compatible with DCP and TMS controllers
• S-Force family

Note

Manufacturer part number suffix 'P' indicates PWM controllable
DCP fan controllers are available separately: stock nos 6670377, 6670371, 6670380, 6670383, 6670387, 6670396

Speed Signal/2

Speed Setting with Control Voltage or PWM

6318/2TDH4P Datasheet
