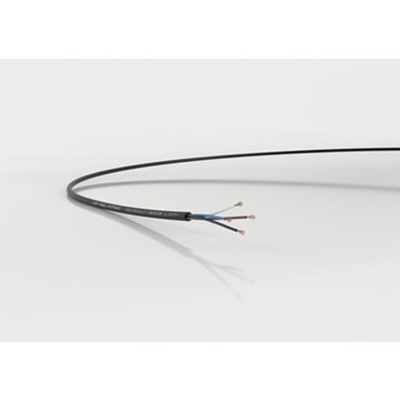

7038866, Lapp UNITRONIC SENSOR FD Li9Y11Y Control Cable, 5 Cores, 0.34 mm², Unscreened, 50m, Black PUR Sheath, 22 AWG, Кабель

LAPP Control Cable, 5 Cores, 22AWG - UNITRONIC Series - 7038866

Use this LAPP control cable with your industrial automation and instrumentation equipment. It contains five cores of super-fine wires and can be used for multiple tasks, from supplying power to receiving and transmitting data. It's part the UNITRONIC series so is designed for use with sensors and actuators. An unshielded construction and cross-sectional area of just 0.34mm² mean the cable is slim and flexible, so suited for use in tight spaces.

Features & Benefits

• Wide operating temperature range between -15°C and +80°C for use in demanding environments
• Polyurethane (PUR) insulation resists corrosion from oil or chemicals
• 22AWG (American wire gauge) bare conductor material supports quality signal transmission
• Voltage rating of 300V for energy-efficient powering of communication equipment

Applications

• Computer peripherals
• Security alarms
• Machine appliance electronics
• Banking systems

Is this control cable halogen-free?

Yes, this control cable is halogen-free, so it won't emit toxic fumes in the event of a fire.

Is this cable protected against signal interference?

No, as this control cable is unscreened, it's best suited to applications where interference and NEXT (near-end cross talk) aren't an issue.

Approvals

UL, CSA

LAPP Unitronic® Sensor/Actuator Cables

Signal transmission cables for use with industrial M8, M12 & M18 threaded connectors to connect with sensors, actuators, and distributed I/O. Industry standard colour coded and OD to match the connector gland size.
Color coding:
3 core – Brown, Blue, Black
4 core – Brown, White, Blue, Black
5 core – Brown, White, Blue, Black, Grey

Datasheet

Datasheet

Cable Selection Guide

Datasheet - 7038866
