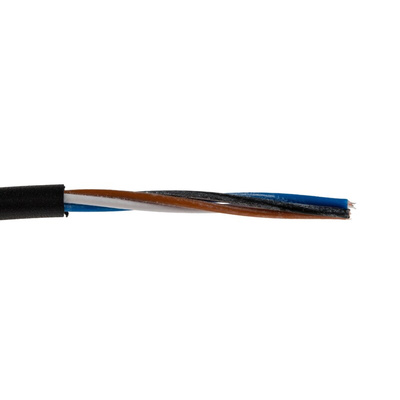

7038865, Lapp UNITRONIC SENSOR FD Lif9Y11Y Control Cable, 4 Cores, 0.34 mm², Unscreened, 50m, Black PUR Sheath, 22 AWG, Кабель

LAPP Black Control Cable, 50m Length, 4 Cores - UNITRONIC Series - 7038865

Looking for a flexible connection solution for sensors and actuators in your industrial automation system? Choose this control cable from LAPP. It has super-fine copper strands that are highly conductive and resistant to corrosion, ensuring a stable and reliable connection. For improved safety, the cable comes with polypropylene core insulation to protect you against electric shocks. The outer sheathing is made of polyurethane, which offers protection against impact and abrasion. Together, these materials make it ideal for installation in demanding industrial environments. With a voltage rating of 300V, this control cable is suitable for low-voltage applications.

Features & Benefits

• Cable diameter of 4.7mm is suitable for setups where space is tight
• Minimum bend radius of five times the cable diameter for easy installation around corners
• Broad operating temperature range of -15°C to +80°C for use in demanding environments
• Bulk cable weight of 13kg/km for easy handling and minimal system strain

Applications

• Mechanical engineering
• Robotics and automation
• Data transmission systems
• Industrial machinery

What size of connectors can I use this cable with?

You can use this cable with standard M8 and M12 connectors, making it a versatile option.

Approvals

UL, CSA

LAPP Unitronic® Sensor/Actuator Cables

Signal transmission cables for use with industrial M8, M12 & M18 threaded connectors to connect with sensors, actuators, and distributed I/O. Industry standard colour coded and OD to match the connector gland size.
Color coding:
3 core – Brown, Blue, Black
4 core – Brown, White, Blue, Black
5 core – Brown, White, Blue, Black, Grey
