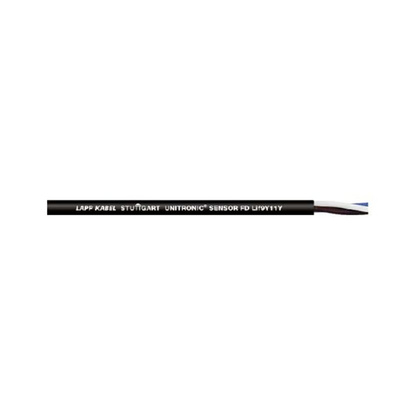

7038864, Lapp UNITRONIC SENSOR FD Lif9Y11Y Control Cable, 3 Cores, 0.34 mm², Unscreened, 50m, Black PUR Sheath, 22 AWG, Кабель

LAPP Control Cable, 3 Cores, 22AWG - UNITRONIC Series - 7038864

Send digital signals between your process control devices and industrial machines using this control cable from LAPP. The three copper-wire cores provide you with channels for power supply, data receiving and data transmission in one cable for a space-efficient setup. A flexible sheath lets you bend the cable around corners without causing strain or risking cracks. The unterminated ends allow you to cut the cable to fit your application and add connectors as necessary. Its operating temperature range between -15°C and +80°C means its suitable for use in harsh conditions.

Features & Benefits

• Electromagnetic compatibility (EMC) for work environments with high levels of electrical emission
• Slim 0.34mm² cross-sectional area to fit into awkward installations easily
• Halogen-free properties ensure there's no risk of toxic gas emission in the event of a fire

Applications

• Packaging conveyors
• Articulated robotics
• Industrial alarms
• Office intercoms

Is this control cable insulated?

Yes, this control cable features polypropylene core insulation under a polyurethane outer sheath. This combination protects against common external contaminants, such as water, oils and chemicals, making the cable suitable for use in demanding environments.

Approvals

UL, CSA

LAPP Unitronic® Sensor/Actuator Cables

Signal transmission cables for use with industrial M8, M12 & M18 threaded connectors to connect with sensors, actuators, and distributed I/O. Industry standard colour coded and OD to match the connector gland size.
Color coding:
3 core – Brown, Blue, Black
4 core – Brown, White, Blue, Black
5 core – Brown, White, Blue, Black, Grey

Unitronic Sensor Cable Data Sheet

Cable Selection Guide

Datasheet - 7038864
