53112924, Lapp SKINTOP Series Black Polyamide Cable Gland, M32 Thread, 11mm Min, 20mm Max, IP68, Кабельный ввод

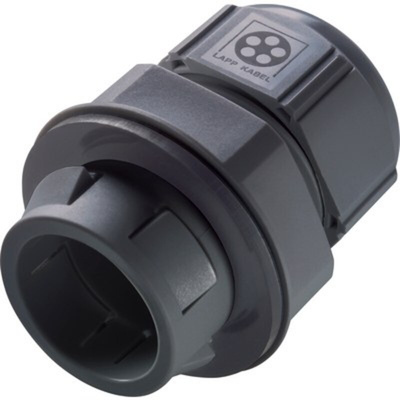

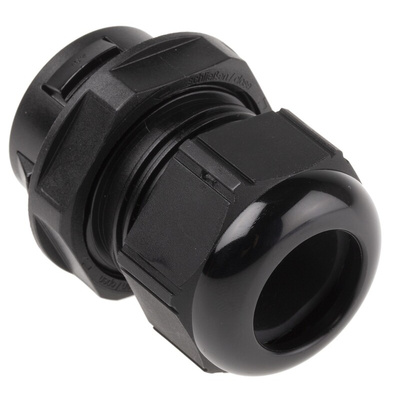

LAPP Cable Gland, 11 to 20mm Cable Diameter, M32 Thread - SKINTOP Series - 53112924

Make strong connections in heavy-duty environments with this cable gland from LAPP. It safely secures cord ends to equipment, while offering strain relief to lessen tension. The rugged polyamide housing protects your conductors to reduce premature wear. Plus, it's UV resistant and can handle the heat in tough settings. An NBR O-ring ensures a tight seal against the mounting surface and vibration protection is on hand to prevent random disconnections.

Features & Benefits

• IP68 rating for a completely dust-tight unit that's waterproof for up to 30 minutes
• Cable diameter range between 11 and 20mm for use with different cables
• Wide operating temperature scope between -20°C and +100°C for use in harsh conditions

Applications

• Machine manufacturing
• Automated control processes
• Switch cabinet technology
• Medical applications

How do I install this cable gland?

Its easy-to-use system lets you install it in a jiffy with a simple snap and click.

Datasheet

Cable Gland Selection Chart

Instruction Sheet - 53112924
