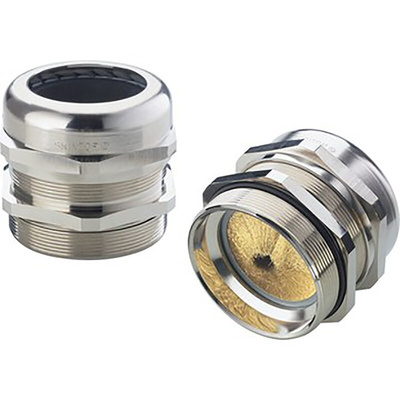

53112678, Lapp Skintop MS-M Brush M40 Cable Gland With Locknut, Nickel Plated Brass, IP69K, Кабельный ввод

Lapp IP69K Skintop MS-M Brush Cable Glands

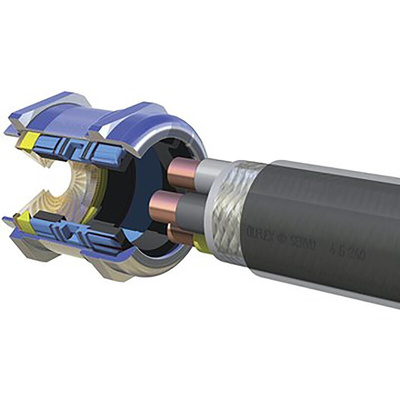

Skintop MS-M Brush cable gland can centre, fix, provide strain relief and seal the cable in one step to IP69K. To use, insert the cable and push the screen braid under the EMC brush, tighten and the connection is complete. The brush is fast and easy to assemble and offers a consistent screen contact between the cable and gland.

Features and Benefits

• EMC-compliant earthing of the copper braiding
• Reliable system
• Brush provides easy 360° screen contact
• IP69K rating

Applications

With a low resistance 360 degree contact, this EMC compliant cable gland is perfect for protecting against electrical signal interference. It is often used in;

• Automation Systems
• Frequency Converters
• Conveyor Systems

Environment

Skintop MS-M Cable Glands are protected to IP69K (for sizes M12 to M63) and as such offer a high degree of protection against dust ingress and liquids. The cable glands are able to be used in harsh environments, either indoors or outdoors, and are even protected from high pressure water jets, which makes them suitable for industrial clean downs.

Alternatives

• 560-694 is an M25 EMC Complaint Cable Gland
• 560-701 is an M32 EMC Complaint Cable Gland
• 560-713 is an M40 EMC Complaint Cable Gland

Datasheet

Datasheet

Cable Gland Selection Chart
