LAPP Cable Gland, M25 Thread, 9 to 17mm Cable Diameter - SKINTOP Series - 53112676
Do you need secure housing for a control cable? This gland from LAPP accepts cables with diameters ranging from 9 to 17mm, making it a versatile component. Push the cable through the terminal and the connector easily secures in place. This protects the cable end against impact damage and loosening due to industrial vibration. The unit has a wide working temperature range between -30°C and +100°C for use in extreme industrial environments prone to high levels of cold and heat.
Features & Benefits
• Included locknut keeps the cable from being pulled out by snags and jolts
• IP69K (ingress protection) rating indicates maximum protection against dust and high-pressure water sprays

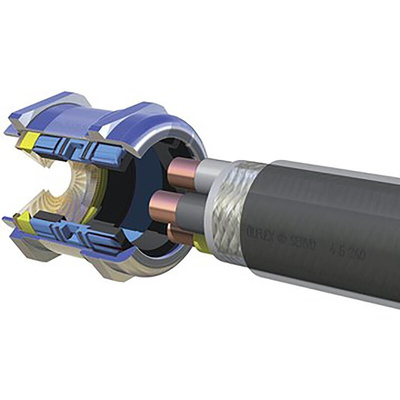

• EMC (electromagnetic compatibility) brush acts as a 360° screen to insulate the connector against interference
Applications
• Telecommunications
• Process control
• Instrumentation
• Data transmission
• Electrical power supplies
What's this cable gland made of?
This cable gland has a brass body material with nickel plating to protect against corrosion. It also comes with an elastomer O-ring to seal the connection against contaminants such as chemicals and grease.
Техническая спецификация
